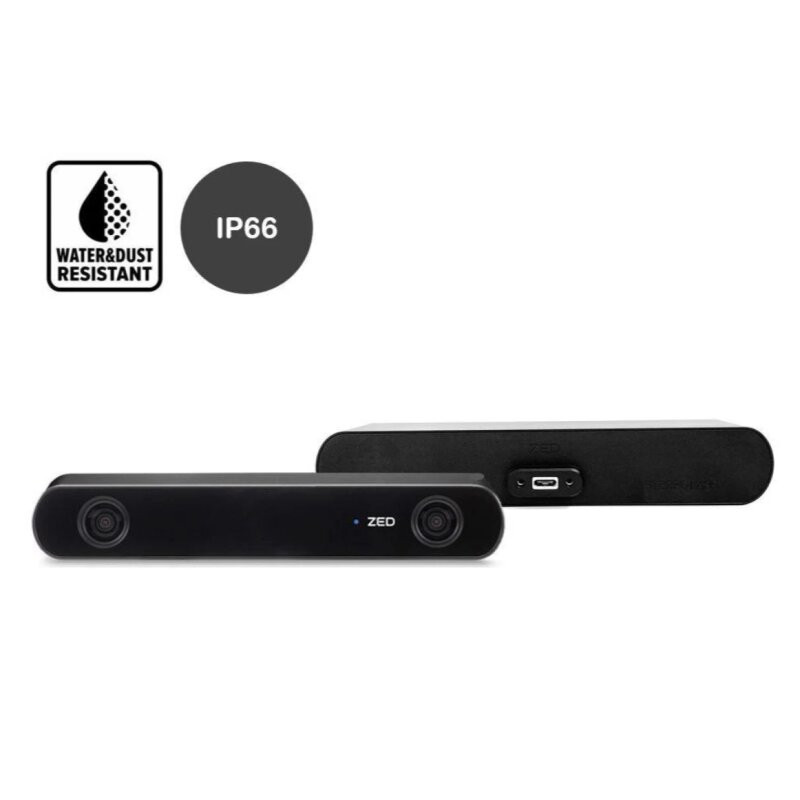

Stereo Labs ZED 2i Stereo Camera

Stereolabs ZED 2i Stereo Camera

OPTIONS (additional charge):
- Polarizer
No Polarizer
With Polarizer
- Lens Focal Length
2.1mm
4mm
- Cable
none
0.3m (1ft)
1.5m (5ft)
3m (10ft)
5m (16ft)
10m (33ft)

Accessories (additional charge)
- ISB 3.0 Type-C Right Angle Dual Screw Locking Cable

Product Features:
Neural Depth Sensing
Spatial Object Detection
Built-in Next-Generation IMU, Gyroscope, Barometer, and Magnetometer
120° Wide-Angle View
All-Aluminum Frame with Thermal Control
Optional Integrated Polarizer for Removing Reflections
IP66 Protection Against Water and Dust
Secure USB Type-C Connection

The ZED 2i Stereo Camera is designed For efficient operation in harsh environments, its IP66 rating and aluminum housing make it ideal for industrial applications such as agriculture, manufacturing, pharmaceuticals, and many others.

The ZED 2i camera covers a wide range of applications, from robotics and spatial analysis to interactive experiments.

Output Resolution:
Side by Side
2x (2208x1242) @15fps
2x (1920x1080) @30fps
2x (1280x720) @60fps
2x (662x376) @100fps

Interface: USB Type C - External cable (up to 10m - 32.80ft)

Baseline: 12cm (4.73 in)

RGB Sensors:
Dual 1/3" 4MP CMOS
2688 x 1520 pixels
2μm x 2μm
Rolling shutter
YUV 4:2:2 - UYV (8bits)

Motion Sensors: Gyroscope, Accelerometer, Magnetometer

Environmental Sensors: Barometer Temperature

Dimensions: 175.3 x 30.3 x 43.1 mm

Weight: 229g

Operating Temp.: -10°C to +45° (14°F to 113°F)

Power: 380mA / 5V USB powered

System:
NVIDIA GPU ≥ 2GB Memory
NVIDIA GPU architecture: Pascal or later
*Maxwell and Kepler architectures are not fully supported
NVIDIA Compute capability ≥ 3.0
Compatible with NVIDIA Jetson

CPU: Dual-core ≥2.4 GHz processor/ Minimum 4GB RAM

Supported OS:
Win 10, Win 11
Ubuntu 20 & 22
Debian, CentOS (via Docker)
Jetson L4T

ZED 2i Sensors - Specifications
2.1mm
2.1mm - fixed focal lens offers an exceptionally wide field of view while also providing optically corrected distortion for enhanced image quality.

4mm
The 4mm focal length lens is perfect for an enhanced resolution and depth accuracy at longer ranges.
