Sensing Health Podiatry 1.0

Sensing Health Podiatry 1.0

A baropodometry platform that helps clinical professionals simplify plantar foot analysis.

A cloud-based baropodometry platform as a Clinical Decision Support System (CDSS) secured, scalable, supported, and AI-enabled.

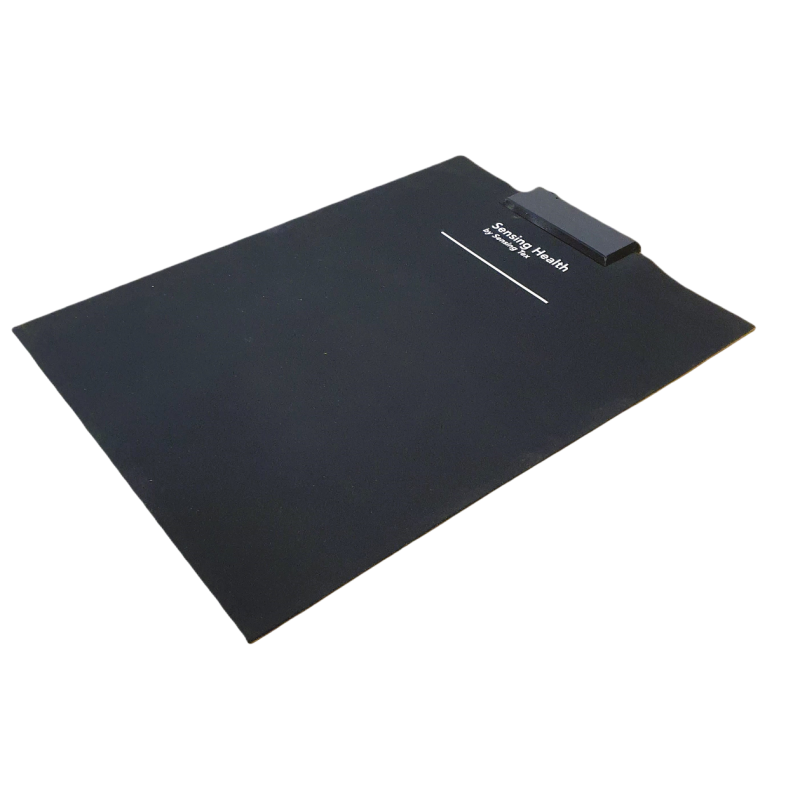

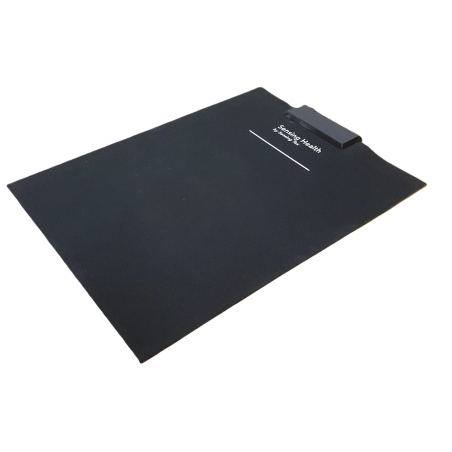

Our Hardware

- 2,304 Sensel Resolution
- 480 X 480 mm Sensing Area

- Flexible and rollable

- 0.5 kg & 3 mm thick
- Transportation Bag
- Magnetic USB cable

Our Software Freeware

- 1 User profile
- 0.1 GB DB Storage per Mat
- Web Application
- Export PDF Analysis
- Weekly Backups
- Other Options SaaS

Software Main Features
- Static Analysis
- Dynamic Analysis
- Balance Analysis

The most portable and only cloud-based baropodometric platform on the market
- ​​Easy integration with existing solutions
- Use it on multiple platforms: desktop, laptop, tablet
- Get new features without software updates

The sensor Mat layout
Matrix 48x48 elements
Distance between centers 10mm
Effective area W480mm x L480mm

Sensing Health Mat Main Features:

Sensing Mat Features
Overall Area (L x W) [mm] 624 x 510
Sensing Area (L x W) [mm] 480 x 480
Number of Sensor Elements 2304
Matrix Topology [R x C] 48 x 48
Sensor Element Resolution [mm] 10
Sensor Element Shape Squared
Sensor Element Size [mm] 6

Pressure Sensing Features
Relative Pressure Accuracy 10% *
Pressure Range 20-10000 mmHg

Hardware Features
ADC Resolution 8-12 bits
Scanning frequency [Hz] Real Up to 100 **
OS & Platforms Compatibility Sensing Hub
Standard Connectivity Hardware USB Serial
Standard Connectivity Enabled USB Serial (24/7)
Connector Power USB Power Cable
Built in Battery No

* This device has been developed to deliver autocalibration based on patient weight
** Varies depending on different settings

SENSING HUB main features
External Dimensions 93 x 63 x 31mm
Body Material Plastic PLA

Software Visualization
Shows the current pressure mapping applied to the sensor. Advanced options can be implemented to find the optimal configuration.

Static Analysis
Pressing the "STATIC ANALYSIS" icon saves the information in the session,
- to analyze it later,
- to print the report

Dynamic Analysis
Analyzes the footprint as you walk on it.

A short tutorial appears after pressing the icon, showing that you have to enter from the left side of the sensor, first placing your left foot.

Balance Analysis
Analyzes the user's balance behavior over time:
- Analyzes the user's balance behavior over time.

- After analysis, the session is available in the historical database.

- Saves the behavior of the center of force

Analysis of lateral, frontal and rear balance is also available.

Data Base
- Analysis results are stored in the database.
- The bar indicates the available space in the database for storing the analysis.
- The stored analyses are organized in pages.
- Each page shows 9 analyses that can be edited, opened, downloaded or deleted using the following icons
