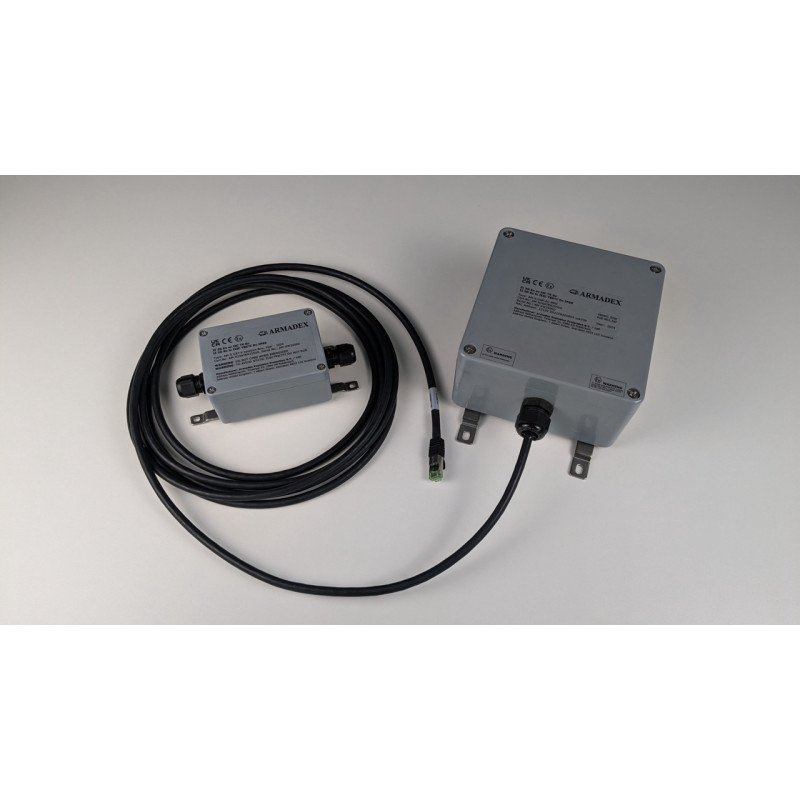

Armadex ATEX Explosion Proof Wireless Access Point (Wi-Fi)

ATEX Zone 2 and 22 version
- Indoor and outdoor use: IP66
- Long range
- Unlimited scalability
- Dual band 2.4/5 GHz
- Cloud-controlled system
- Intuitive software

II 3G Ex ec IIC T4 Gc
II 3D Ex tc IIIC T135°C Dc

Explosion-proof wireless data transmission.

ATEX Wi-Fi Infrastructure - Applications:
- Food and Beverage Industry (Alcohol Vapours, Sugar and Herbal Ingredients)
- Warehouses (Storage and Handling of Plant Materials or Chemicals)
- Oil and Gas Refineries
- Offshore Industry
- Pharmaceutical and Chemical Industry

Explosion Safety Specifications (ATEX)

EU Directive: 2014/34/EU (ATEX 114)
ATEX marking gas: II 3G Ex ec IIC T4 Gc
ATEX marking dust: II 3D Ex tc IIIC T135°C Dc
Applied standards: EN 60079-0, EN 60079-7, EN 60079-31

Ideal for long-range deployments, the Ex-M UAP-LR Wi-Fi Access Point offers simultaneous, dual-band operation. Innovative triangular antenna design provides long range, symmetrical link coverage area. Ex-M UAP-LR antenna gain is better than unidirectional, high transmission power, in case of connecting distant clients.


Dimensions: H121 x W250 x D255 mm
Weight: 2.5 kg
Mounting: Wall or ceiling mount brackets
Networking interface: (1) 10/100/1000 Ethernet Port
Buttons: Reset
Antennas:
- (1) Dual-Band Antenna,
- Tri Polarity,
- 2.4GHz, 6dBi
Wi-Fi Standards: 802.11 a/b/g/n/ac
Power Method: 24V, 0.5A Gigabit PoE Adapter (Pairs 4, 5+; 7,8 Return)
Power Supply: 24V, 0.5A Gigabit PoE Adapter
Maximum Power Consumption: 6.5W

Maximum TX Power
2.4 GHz: 24dBm
5GHz: 22dBm
Operating Temperature: -10 to 70°C (14 to 158°F)
