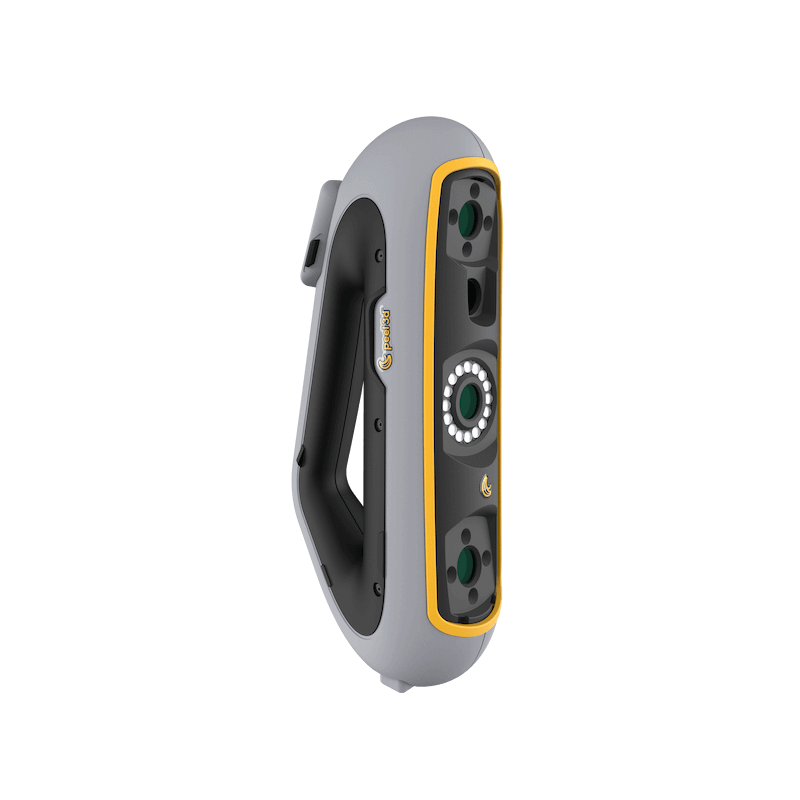

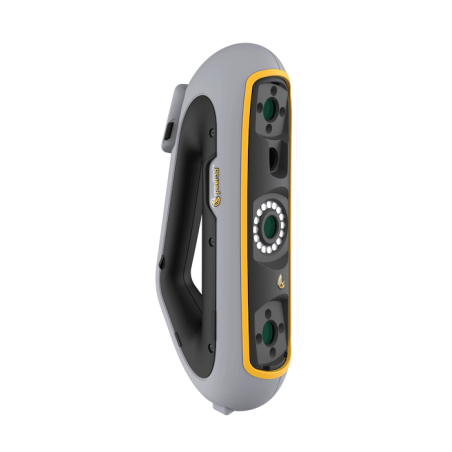

Peel 3 3D scanner

The Peel3 scanner is a brand of the Canadian scanner manufacturer Creaform.
Peel3 is an ideal solution for reverse engineering, dimensioning and process digitization. The scanner has dedicated Peel.OS software with Peel.CAD for reverse engineering.

The scanner is very easy to use. It has an ergonomic shape that facilitates comfortable scanning even with time-consuming, large and complex objects.

PEEL scanner:

- Infrared LED projector technology, thanks to which Peel 3 copes much better with shiny surfaces and mapping sharp edges.
- Wide range of resolutions and the ability to change the size of the working field, thanks to which Peel 3 can scan both small, several-centimeter objects and several-meter objects (previously we had separate devices dedicated to different dimensions).
- Touch LCD panel allowing you to control the device.
- Increased the number of points captured from 550,000/s to 1,250,000 points/s, making the process much faster.

Peel 3 Scanner

The optimal professional-class 3D scanner that allows for perfect reproduction of real objects in a few minutes.
Main areas of application:
• Art and heritage protection
• AR, VR and 3D graphics
• Medicine
• Education

Peel 3.CAD Scanner

Reverse engineering at the highest level. With peel 3.CAD you can extract all the information you need and transfer it directly to your favorite CAD software.
Main areas of application:
• Automotive and tuning
• Product design
• Operation and maintenance

Software: peel.OS, peel.CAD*
Recommended object size: 0.1 - 3.0 m
Accuracy (volumetric, scanning): 0.250 mm/m; up to 0.1 mm
Measurement capabilities:
cylinder - 1.5 mm
hole - 3.0 mm
step - 0.1 mm
wall - 1.0 mm
Scanning speed of 1m2 surface: 80 s
Distance from scanned object: from 250 to 550 mm
Type of structured light projector: IR VCSEL
Scanner control: touch screen
Texture resolution (on the model): 250 DP
Dimensions: 304 x 150 x 79 mm
Weight: 950 g
Connectivity: USB 3.0
Output formats dae, .fbx, .ma, .obj, .ply, .stl, .txt, .wrl, .x3d, .x3dz, .zpr, .dxf*, .iges*, .step*

*peel.CAD software feature (sold separately)
