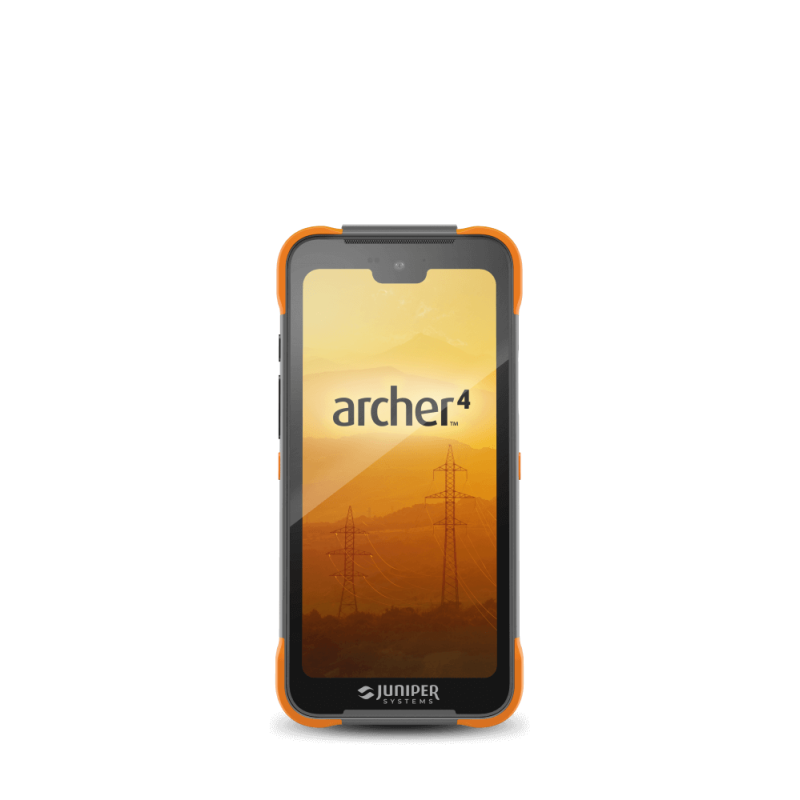

Juniper Systems Archer 4

Juniper Systems Archer 4

The Archer 4 Rugged Handheld is the latest release in the Archer family of products and is an exciting new platform for today’s mobile data collection. Its power-efficient Qualcomm processor, Android 14 operating system, and ultra-rugged ergonomic design combine to offer users a versatile option for frequent data entry.

Featuring an Octa-core Qualcomm CPU
Android 14 GMS operating system
5G Cellular with 4G LTE fallback
Centimeter level accuracy with optional GNSS Expansion POD
USB-C charging and data transfer
Hot-swappable batteries
Juniper Rugged™


Reliable mobile operating system
The Archer 4 runs on the Android 14 operating system and will support upgrades through Android 18, providing security and compatibility for years to come. The Archer 4 is also Google Mobile Services certified to provide users with a reliable platform for running popular data collection software.

Connectivity
The Archer 4 is a versatile communication device allowing you to stay connected to your network, the Cloud, or other devices. The processor chipset on every unit supports 5G cellular voice and data connectivity, Wi-Fi 6 compatibility, Class 1 Bluetooth 5.2 functionality, and provides dual-band GNSS location data.

All-day usability
From its ergonomic enclosure to its sunlight-readable display, and down to its all-day battery life, the Archer 4 is built for long workdays wherever the job takes you.

Expandable
To meet the needs of any job, the capabilities of the Archer 4 can be enhanced with either our modular barcode scanner or GNSS expansion pod.

Batteries
A choice of battery size means you can pack your Archer 4 with more power for a long day, or pop in the smaller battery for a more compact carrying setup. Hot-swapping batteries allows you to switch out a new battery without powering down the device and interrupting your workflow.

Built Juniper Rugged™
At Juniper, we put our hardware through the wringer. Even after we meet IP68 and MIL-STD-810H standards for water, dust/debris and shock, we continue to test-to-fail so we know just how far users can push our devices. Rest assured rain, extreme temperatures, debris, and accidental drops or dunks won’t stop a productive workday with the Archer 4.


RTK ENABLED GNSS EXPANSION POD
Looking for greater accuracy with your Archer 4? The GNSS Expansion Pod allows you to achieve “sub-inch” centimeter-level accuracy with RTK. Using Archer Connect, our utility software, you can connect the GNSS Expansion Pod to RTK networks worldwide for when your work requires high-accuracy mapping. Simply fire up your Archer 4, launch Archer Connect, choose your corrections service, and begin mapping! The GNSS Expansion Pod is attached to the back of your Archer 4, which creates an all-in-one-hand mapping solution. One-handed operation leaves you free to move about, using your other hand to steady yourself or to operate another piece of equipment. Archer 4’s lightweight design prevents carrying fatigue while providing powerful data processing.

Experience Juniper Rugged ™
IP68 & MIL-STD-810H – completely waterproof, dustproof, and shockproof
All-day device battery life and impressive battery lifecycle

Manufacturing
Knowing what you have and where it is located is essential for warehouse management. From inbound processing to shipping and distribution, the optional barcode scanner the Archer 4 Rugged Handheld makes the work go quicker. You can work more efficiently knowing the information is entered correctly the first time. You don’t have to worry about your Archer 4 dying mid-shift, simply hot-swap a charged battery and continue your work.
The Archer 4’s rugged design fits a manufacturing environment far better than a consumer tablet. Suitable for both extreme cold and extreme heat, it will maintain functionality throughout your workday. The Android 14 OS allows you to download and run the software and apps that you use every day.

Energy & Power
Rugged environments require rugged hardware. Around energy and power plants, a consumer tablet won’t cut it for water, dust, drops and extreme temperatures. The Archer 4 meets both IP68 and MIL-STD-810H standard testing for rugged devices so you know your device, and the data on it, are safe from loss.
Easily collect data for meter reading, installation and services. Map assets at the plant or out in the field. With 5G cellular connectivity, you can share your work in real time. The Archer 4 is your catch-all device to stay connected and create an uninterrupted workflow. The sleek size means that you will still have a free hand while holding the Archer 4, or that it can easily fit into a pocket when you don’t want to hold it.

Field Service
A Field Service environment is really any and every environment. Technicians must be able to perform their work no matter the weather conditions or remoteness of the location. A rugged device is necessary to ensure fewer interruptions to work and to prevent loss of data due to damage or connectivity issues.
With Archer 4, technicians can stay in touch with the office using 5G cellular connectivity, run software and apps on the Android 14 operating system, and input data easily with the responsive touch screen. Take images of assets needing repair and maintenance using the camera to include in your reports. The slim design supports a more modern type of data collection including 2 programmable buttons so even your keypad is more efficient.

Mapping
Location and asset mapping rely on data accuracy, efficient collection and easy shareability. Whether you are mapping company assets, wetland boundaries or underground utility lines, the Archer 4 can improve your workflow. With 5G cellular connectivity, even in the most remote locations, you can work uninterrupted. If you need more accuracy than the chipset dual-band GNSS receiver provides, you can pair the Archer 4 with a sub-meter Geode GNSS Receiver or a GNSS expansion pod to get the accuracy you need for the job.
The Archer 4 is also compatible with our Uinta Data Collection Software to help users collect and review data in customizable forms with easy cloud backup and sharing capabilities. Uinta also includes premade form templates so you can get started mapping without delay.


PROCESSOR
Qualcomm® QCM4490 octa-core up to 2.4 GHz

OPERATING SYSTEM
Operating system: Android™ 14
GMS (Google Mobile Services) certified using EDLA
Upgradeable through Android 18

STORAGE
Memory (RAM): 8 GB
Internal Storage (ROM): 128 GB
SD Card Storage up to 512 GB

WIRELESS CONNECTIVITY
5G with 4G LTE fallback, Dual Nano SIM card slots
Cellular: LTE-FDD: B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B20, B25, B26, B28a, B66, B71, LTE-TDD; B38, B40, B41, 5G; N1, N2, N5, N28, N41, N66, N71, N77, N78, N79
Wi-Fi®: 6E 802.11 2.4/5 GHZ a/b/g/n/ac, 802.11 ax
Bluetooth® 5.2
Dual-band GPS, GLONASS, Beidou, Galileo, QZSS
NFC
OTG
USB Type-C (5Gbps, 5V power delivery)

JUNIPER RUGGED™
Ingress protection: IP68 waterproof & dustproof
Operating Temperature: -4 F to 140 F (-20 C to 60 C)
Meets MIL-STD-810H test procedures: Method 500.6 Low Pressure, Method 501.7 High Temperature, 502.7 Low Temperature, 503.7 Temperature Shock, 506.6 Rain, 507.6 Humidity, 510.7 Sand and Dust, 512.6 Immersion, 514.8 Vibration, 516.8 Shock

PHYSICAL
Weight: .72–.87 lbs (325–395 g) depending on battery and expansion configuration
Dimensions with 4500 mAh battery: 174 x 85 x 15 mm
Dimensions with 8300 mAh battery: 174 x 85 x 22 mm
2 user programmable buttons

DISPLAY
540 Nits typical
Screen size (diagonal): 6.26”
Screen resolution: 2280 x 1080 FHD+
Capacitive multi-touch interface for wet conditions
Chemically-strengthened Gorilla® Glass 5
Optimized for extreme environments including wet touch

CAMERA
Front: 16 MP
Rear: 48 MP with LED illumination

EXPANSIONS
Optional 1D/2D barcode add-on
GNSS receiver

BATTERY
Removable Li-ion battery
Battery size: 4500 mAh (standard) or 8300 mAh (optional upgrade)
Internal 300 mAh battery allows for hot-swapping

CERTIFICATIONS AND STANDARDS
IC/FCC/CE
UKCA
ROHS, REACH, REACH Restriction Article, EU POP, WEEE
California Prop 65
TSCA
Bluetooth SIG
RCM
Japan Radio (TELEC, JATE)
Brazil ANATEL
SCIP
Canada Prohibition
ERP, CEC, DOE
PTCRB
Global Certification Forum (GCF)
AT&T Network Approved
