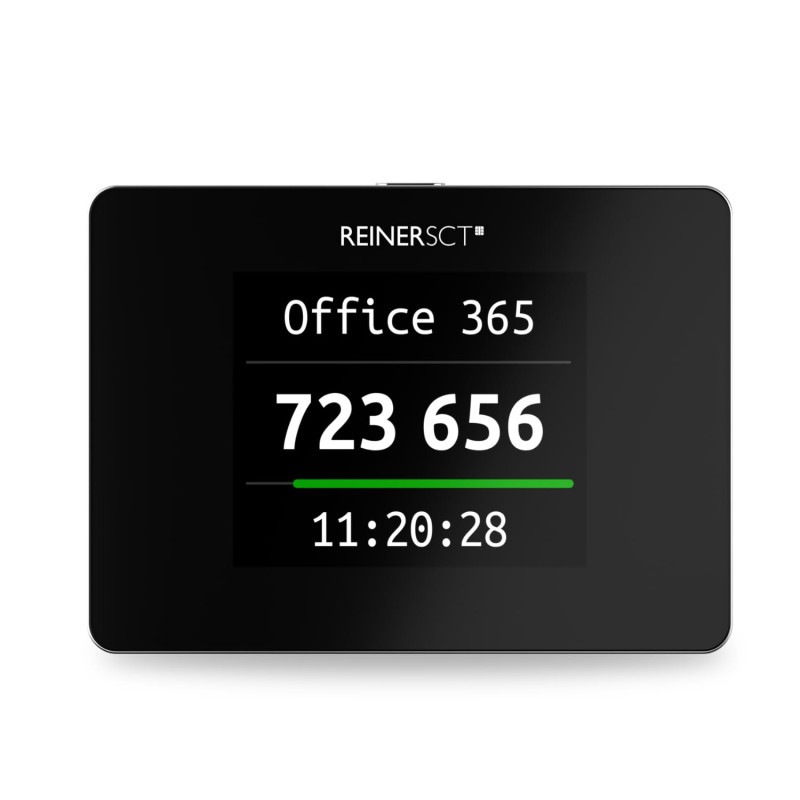

REINER SCT Authenticator mini – hardware-based TOTP generator for 2FA

REINER SCT Authenticator mini – hardware-based TOTP generator for 2FA

Manufacturer: REINER Kartengeräte GmbH & Co. KG, Germany

The REINER SCT Authenticator mini is a compact hardware generator for TOTP (Time-Based One-Time Password) codes, designed for two-factor authentication (2FA). The device generates one-time authentication codes without requiring a smartphone or an authenticator app.
The Authenticator mini operates offline, with TOTP keys stored in the device's secure hardware chip. It supports over 100 TOTP accounts and the SHA-1, SHA-256, and SHA-512 algorithms in compliance with the OATH-TOTP / RFC 6238 standard.
A built-in camera allows for the direct import of TOTP keys from the QR code displayed during 2FA setup. The device also features a color touchscreen, optional PIN protection, and an internal real-time clock. Time synchronization can be performed one-way via an encrypted QR code.
A key feature of the mini model is its ability to automatically transmit the generated TOTP code to a computer via USB. It utilizes the USB-HID standard for this purpose, functioning like a keyboard so that the code does not need to be manually typed in.

Technical Specifications

- Device type: Hardware TOTP generator
- Application: Two-factor authentication (2FA)
- Standard: OATH-TOTP (RFC 6238 compliant)
- Supported TOTP algorithms: SHA-1, SHA-256, SHA-512
- Number of supported TOTP accounts: Over 100
- Key/code storage: Secure hardware chip
- Non-volatile memory: Data retained even after battery depletion
- Code transmission interface: USB-HID Keyboard
- Device connector: USB-C
- USB-C functions: TOTP code transmission and battery charging
- New TOTP code generation: Every 30 seconds
- TOTP account import: Via built-in camera and QR code
- Time synchronization: One-way via encrypted QR code
- Clock: Precision quartz RTC (Real-Time Clock)
- Average RTC drift: <1 ppm after automatic calibration (at 25°C reference temperature)
- Display: Color TFT
- Display diagonal: 1.77"
- Resolution: 128 × 160 pixels
- Display area: 36 × 29 mm
- Operation: Touchscreen with single-finger swipe gesture support
- Physical buttons: 1
- Camera: Color CMOS
- Camera technology: OmniPixel3-HS
- Camera field of view: 57°
- PIN protection: Yes (optional)
- Power supply: Built-in rechargeable battery Lithium-polymer
- RTC backup: rechargeable battery
- Housing color: black / silver
- Dimensions: approx. 67.5 × 49 × 12.1 mm
- Device weight: approx. 78 g
- Weight incl. packaging: approx. 93 g
- Packaging dimensions: approx. 100.5 × 70 × 18 mm
- USB cable length: approx. 1 m
- Operating temperature: 0°C to +50°C
- Storage temperature: -10°C to +50°C
- Permissible humidity: max. 90%, non-condensing
- Vibration resistance: 10–75 Hz; 10 m/s² according to ISO/IEC 60068-2-6
- Drop test: 1 m according to DIN EN 60068-2-31
- Manufacturer compliance: CE, WEEE, RoHS2, BattG
- Firmware update capability: yes
- REINER SCT part number: 2708016-000
- EAN: 4011170084796
- Manufacturer warranty: 2 years
- Set contents: REINER SCT Authenticator mini, quick start guide, and USB-A to USB-C cable

Required software

Standard TOTP authentication
No additional software is required for the basic operation of the Authenticator mini.
The device independently:
- stores TOTP keys,
- generates codes,
- displays them on the screen,
- can transmit the generated code via USB-HID.
It does not require a smartphone app or a constant internet connection for this purpose. Reiner SCT
Authenticator ControlCenter
The manufacturer provides optional Authenticator ControlCenter software for device management. It is not necessary for standard TOTP code generation.
ControlCenter can be used for tasks such as:
- updating the device,
- managing the device,
- renaming stored TOTP accounts. REINER SCT Support Portal
The current version of Authenticator ControlCenter is designed for:
- Windows 10 64-bit,
- Windows 11 64-bit. REINER SCT Support Portal
REINER SCT Login
Optionally, the Authenticator mini can work with REINER SCT Login software, allowing TOTP to be used as a second factor when logging into Windows. However, this is an additional solution, not software required for the operation of the Authenticator mini.

Applications

The REINER SCT Authenticator mini can be used for:
- two-factor authentication (2FA),
- protecting online accounts,
- securing access to cloud services,
- securing email accounts,
- securing administrative and business accounts,
- authenticating users for Microsoft 365 and other services utilizing TOTP,
- protecting accounts for Google, Amazon, AWS, Adobe, PayPal, Dropbox, and other services compliant with RFC 6238,
- replacing apps like Google Authenticator, Microsoft Authenticator, or other TOTP apps in scenarios where the service supports standard TOTP,
- separating the device used for logging in from the device generating the second factor,
- securing Windows logins using the additional REINER SCT Login software,
- personal use,
- professional and business use.

Advantages

Hardware-based TOTP generation
The TOTP key does not need to be stored in a smartphone app; instead, it resides on a separate hardware device (Reiner SCT).

Offline operation
The Authenticator mini does not require an Internet connection to generate one-time codes.

Over 100 accounts
A single device can store more than 100 TOTP configurations.

Automatic code entry via USB
USB-HID allows the generated code to be transmitted without manually typing in the six-digit value.

Built-in camera
Accounts can be set up by scanning QR codes, eliminating the need to manually enter TOTP secrets.

Compact size
The device measures approximately 67.5 × 49 × 12.1 mm and weighs about 78 g, making it much more portable than the tanJack® deluxe.

Color touchscreen
Simplifies account selection and device operation.

Optional PIN
Provides additional protection against unauthorized use if the device is physically lost or stolen.

Platform independence
No dedicated Windows, macOS, Android, or iOS app is required for standard code generation.

Persistent data storage
Saved accounts remain in memory even if the battery drains completely.

Firmware update capability
The device is not a closed system; the manufacturer supports updates via the Authenticator ControlCenter.
