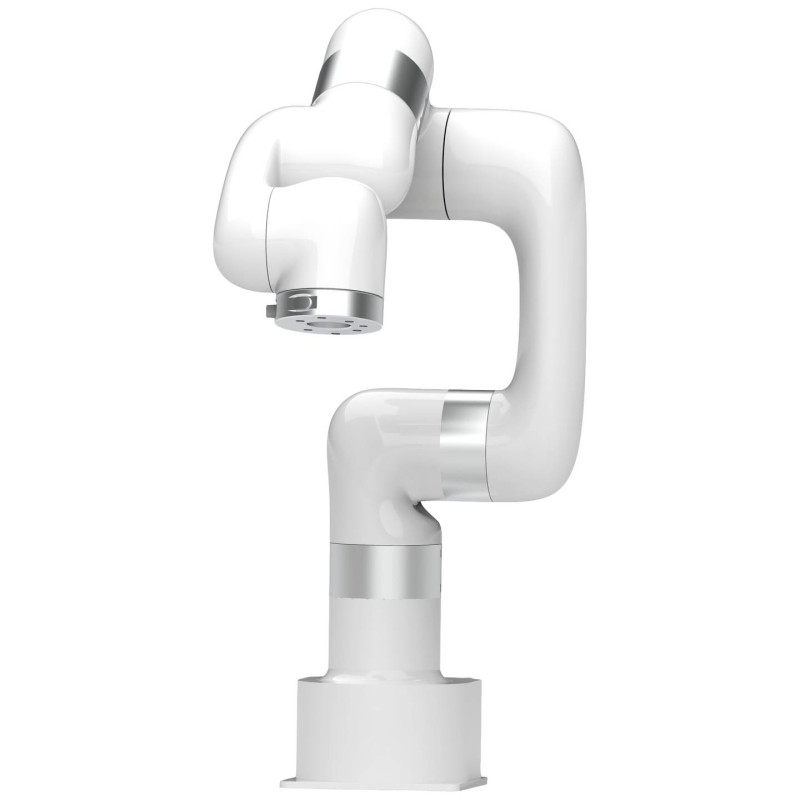

UFactory X-ARM Lite 6

UFactory X-ARM Lite 6

UFACTORY Lite 6 to lekki 6-osiowy robot o udźwigu 600 g i powtarzalności 0,5 mm.

- oszczędność miejsca
- do zadań, nie wymagających wysokiej dokładności

Zawartość opakowania
Lite 6 robot*1
Integrated Control Box
Ethernet Cable

Payload: 600g
Reach: 440mm
Degrees of freedom (DOF): 6
Repeatability: ±0.5mm
Maximum Speed: 500mm/s
Weight (robot arm only): 7.2kg
Speed: 500 mm/s
EOAT: ISO9409-1-50
Motor Type: DC Brushless
Control Box: Build-in
I/O Ports (Base): 8
I/O Ports (EOAT): 4
Robot Communication: Private TCP
Developing Environment: Python/ROS/C++
GUI: UFACTORY Studio

Maximum Speed: 180°/s
Joint 1: ±360°
Joint 2: ±150°
Joint 3: -3.5°~300°
Joint 4: ±360°
Joint 5: ±124°
Joint 6: ±360°

Interface
Windows 10, macOS 10.10 or later, Ubuntu 12.04 or later.
API Compatibility
Interfaces with any product that has an API
Our robot API is open-source and users can make adjustments to the software as needed to interface with other products. While all integrations are possible, they all require custom code work i.e. most customers will need to write custom libraries and install software packages that are not shipped with the robot.
Open-source APIs GitHub.
Learn More >
Hardware Compatibility
Interfaces with any product that has 12~24V general purpose inputs/outputs ModBus RTU (RS485).
