Integrated Biometrics Mannix FAP 60 mobile fingerprint and palm scanner

Mannix – FAP 60 mobile fingerprint and palm scanner

Manufacturer: Integrated Biometrics, USA

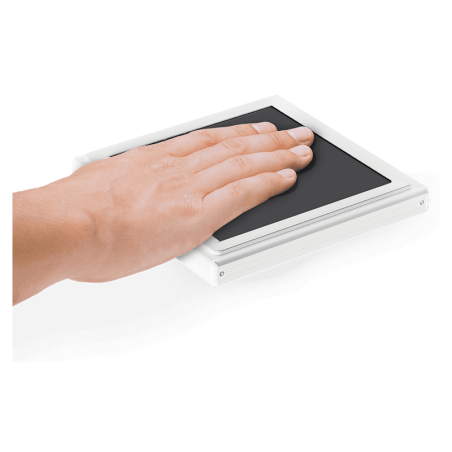

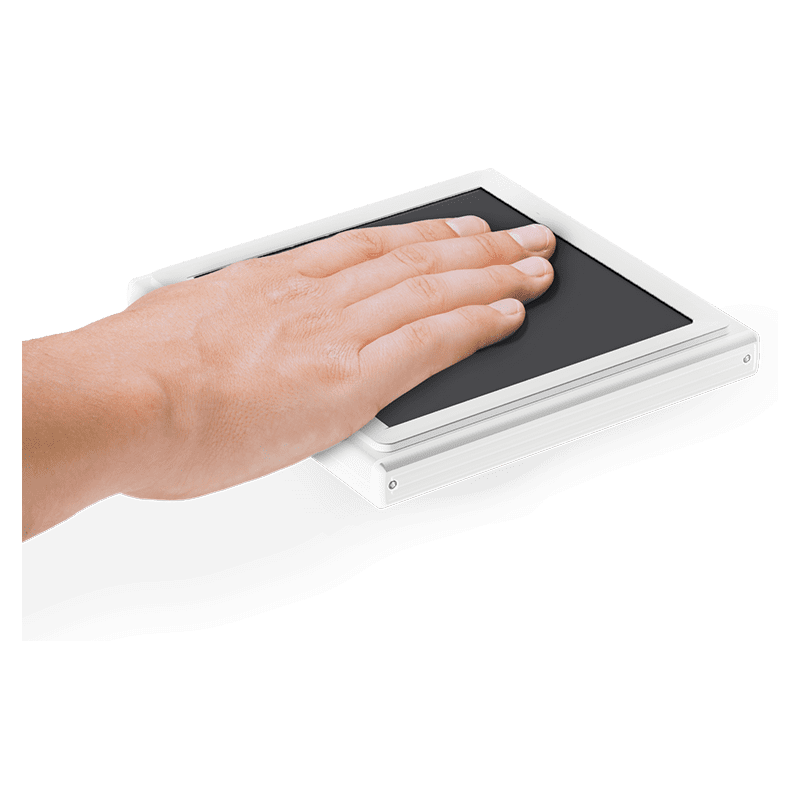

The Integrated Biometrics Mannix is ​​a compact, mobile biometric scanner designed for high-quality fingerprint and palm image capture. The device utilizes Integrated Biometrics' patented LES (Light Emitting Sensor) technology and ZTX (Zero Bezel Technology) design, which eliminates the traditional bezel surrounding the scanning area. This allows virtually the entire sensor surface to be used for capturing large palm areas and various types of prints.

Mannix features an active scanning area of ​​127 × 127 mm and enables the capture of single and multiple fingerprints, rolled prints, as well as images of the upper and lower palm and the side of the hand (the "writer's palm" or hypothenar area). The device complies with FBI Appendix F and Appendix P requirements and is classified as FAP 60 (Fingerprint Acquisition Profile 60).

A key feature of the Mannix is ​​its portability. The scanner communicates via USB 3.0 / USB-C and can be powered directly by the host device, such as a compatible smartphone, tablet, or computer. Consequently, it does not require a separate power supply for typical mobile operations.

LES technology enables operation even in challenging field conditions. The manufacturer highlights the scanner's resistance to strong ambient light and to contaminants on the sensor surface or fingers, such as moisture, grease, dust, or oil. The scanner is designed for applications in mobile, law enforcement, military, identification, and forensic sectors.

Technical specifications

- sensor technology: ZTX Zero Bezel LES Active Optical™
- sensor class: FAP 60
- imaging certification: FBI Appendix F Certified
- palm image compliance: FBI Appendix P Compliant
- resolution: 500 ppi/dpi
- grayscale range: 256 levels
- maximum image size: 2500 × 2500 pixels
- supported image formats: RAW, JPEG, JPEG2000, BMP, PNG, WSQ
- WSQ: FBI-compliant format
- encryption: AES 256-bit and RSA algorithms
- minimum frame rate (flat scan): >6 fps
- minimum frame rate (rolled scan): >10 fps
- single-finger capture support
- simultaneous multi-finger capture support
- palm scanning support
- rolled fingerprint support
- multi-device and multi-processor processing support
- image quality assessment: NFIQ v1
- NFIQ2 support on Windows
- total scanner dimensions: 161.0 × 160.9 × 20.3 mm
- platen dimensions: 127.8 × 127.8 mm
- active scanning area: 127.0 × 127.0 mm
- weight: 600 g
- communication interface: USB 3.0
- connector: USB-C
- power supply: via USB from host device
- USB voltage: 4.4–5.25 V
- power consumption - current during scanning: <500 mA
- physical security: Kensington Security Slot
- scanning surface protection rating: IP65
- surface durability: MIL-C-675c 4.5010, MIL-STD-810F
- surface coating: IB nanocoat
- operating temperature: –10°C to +55°C
- storage temperature: –40°C to +80°C
- operating humidity: 20–95% RH at temperatures below 40°C, non-condensing
- ESD compliance: IEC 61000-4-2
- vibration resistance test: IEC 60068-2-64
- RoHS compliance: 2011/65/EU with amendment 2017/2102
- CE compliance: EN 55032:2015+A11:2020, EN 55035:2017+A11:2020
- device safety: EN IEC 62368-1:2020+A11:2020
- biometric template formats: ISO 19794-2:2005/2011, ISO 19794-4:2005/2011, ANSI INCITS 378-2004, ANSI INCITS 381-2004.

Required Software

Mannix is ​​not a standalone biometric identification system. It is a biometric data capture device; therefore, it requires a computer or mobile device and an application to operate the scanner.
The manufacturer provides the IBScanUltimate SDK (Software Development Kit), which enables the integration of the scanner with biometric systems and third-party applications. The SDK includes device drivers, libraries and software components, API (Application Programming Interface) documentation, demo applications, and sample source code.

Supported environments:
- Windows 11 Desktop
- Android 15 or later
- Linux Kernel 5.x / 6.x or a later supported version
- Ubuntu 22.04 LTS or later
- Debian 12 or later
- x64 processor: 2.0 GHz or faster
- ARM: 1.0 GHz or faster
- RAM: minimum 1 GB (according to the latest datasheet).

Required software:
Integrated Biometrics IBScanUltimate SDK or compatible biometric software utilizing Integrated Biometrics drivers/APIs.

Applications
Mannix is ​​designed primarily for applications requiring high-quality, standards-compliant biometric data capture:
- identity registration and verification;
- fingerprint capture for AFIS systems and other biometric databases;
- capture of full fingerprint sets;
- rolled fingerprint capture;
- palm print capture;
- capture of upper and lower palm areas; - capture of the side of the hand – writer's palm / hypothenar;
- mobile identification units;
- police and law enforcement;
- forensics and forensic identification;
- border control and national security;
- military applications and field operations;
- population registers and national ID systems;
- voter registration systems;
- public administration and social service systems;
- biometric registration, enrollment, identification, and verification systems.
