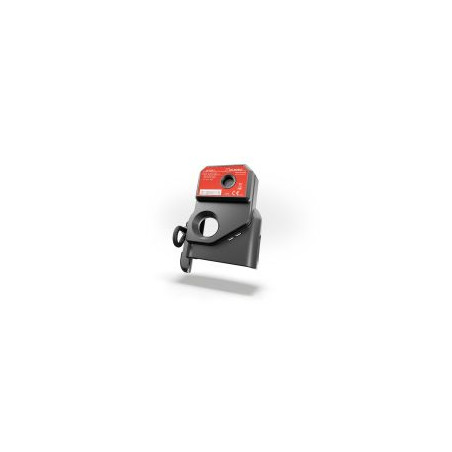

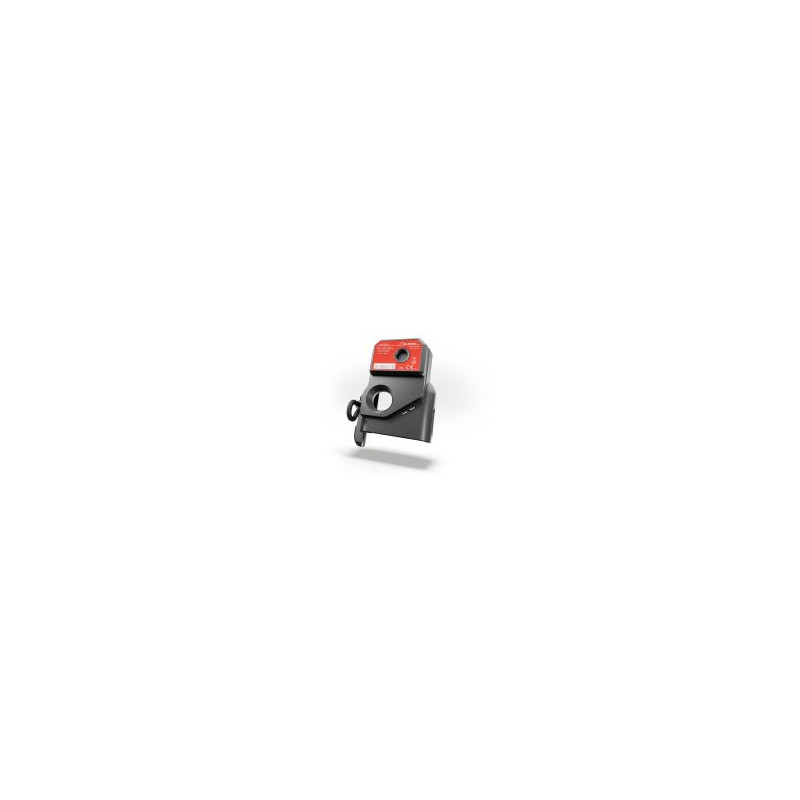

i.safe Mobile IS-TC1A.1
The IS-TC1A.1 thermal imaging camera, in combination with the IS530.1 industrial smartphone, detects temperatures in the Ex-hazardous zone from -40 °C to 330 °C in a few seconds via the Seek Thermal app (free download from the Google Play Store). Thermal images and videos are processed and documented directly via the ISM interface of the IS530.1 smartphone.
Sensor resolution
- 200 (h) x 150 (v)
- 30000 pixel
- FixFocus
- Digital zoom via App
Sensor sensitivity: 65 mK (typical)
Frame rate: <9 Hz bis 32 Hz
Scene dynamic range: -40 °C bis 330 °C
Temperature accuracy
±7 °C and 7 % (at 5 °C to 140 °C)
±10 °C and 10 % (at 140 °C to 330 °C)
Field of view
- 35° (HFOV)
- 26° (VFOV)
Detection range up to 300 m
Recognition range up to 75 m
Identification range up to 25 m
Dimensions
Size: 112,0 x 82,0 x 50 mm
Weight: 195 g
Types of protection
IP68 dust-/waterproof
MIL-STD 810H
Usable from -20 °C to +55 °C
Further features: Power supply over the connected mobile device
Approvals
ATEX (Europe) approved
II 2G Ex ib IIC T4 Gb
II 2D Ex ib IIIC T135°C Db
IECEx (International) approved
Ex ib IIC T4 Gb
Ex ib IIIC T135°C Db
