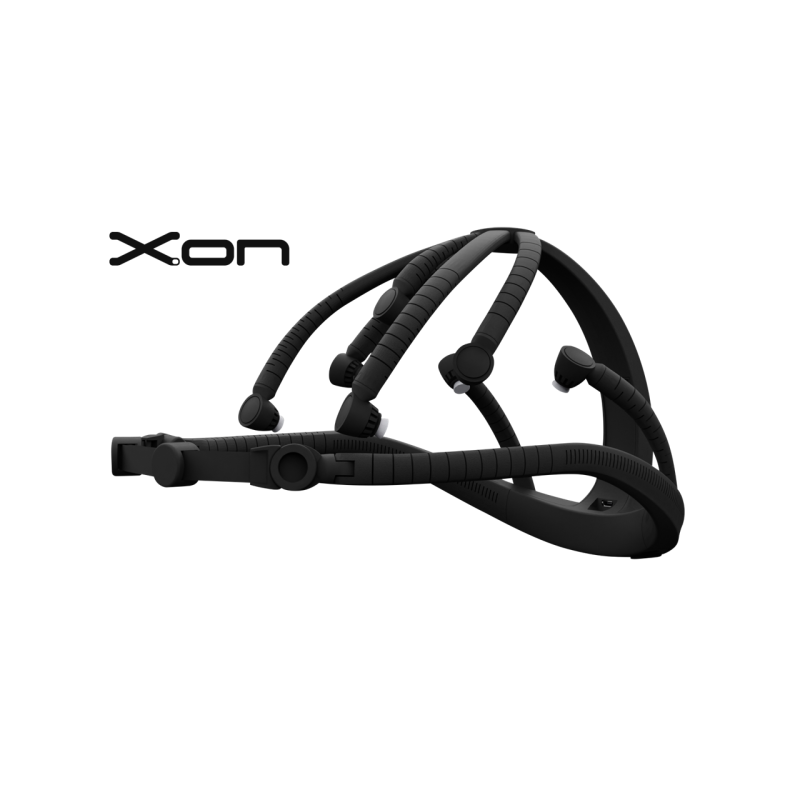

BrainBit X.on EEG Headset 7 Channel

Zapytaj o cenę i dostępność na info(@)pronetkrakow.com.pl


BrainBit X.on EEG Headset 7 Channel plus AUX Channel

X.on is a 7-channel set designed for brain analysis in research, development, education and neuromarketing.
The EEG set combines quality and ease of use with a lightweight and robust design, ensuring versatile and flexible use in EEG analysis, and is equipped with an additional auxiliary channel for bipolar recordings.

ATTENTION:
This product is a research and development tool and should not be used to diagnose or treat any disease. It is intended for use in research projects and the development of new devices.

The Brain Products X.on EEG headset is an innovative 7-channel wireless headset with an additional AUX channel, designed specifically for use in research, development, education and neuromarketing. It combines advanced technology with a user-friendly design to record and analyze precise EEG data. Thanks to the use of sea sponge electrodes and high-quality internal electronics, the X.on EEG set enables effective monitoring and analysis of brain activity. Integration with Android smartphones via Bluetooth® and compatibility with the X.on application significantly expand the possibilities of monitoring and analyzing data.


Hardware

7 EEG channels:
- Electrode positioning system: 10-20
- Positions: F3, F4, C3, Cz, C4, P3, P4 + GND/REF (ear clip)
Technology: passive, sponge-based
- AUX channels: 1
- Size: One size (youth to adult), Size range: 52-60 cm head circumference, Weight: ~110g
- Data transmission: Bluetooth® Low Energy (version 5), 2.4 GHz ISM band. There are no restrictions on use worldwide.
- Amplifier sampling rate: 125, 250 or 500 Hz, The 500 Hz functionality depends on the brand and type of Android™ phone used and the built-in Bluetooth® module.
A/D conversion: 16-bit or 24-bit, The 24-bit functionality depends on the brand and type of Android™ phone used and the built-in Bluetooth® module.
Input range
+/-9.76 mV (16-bit)
+/-312 mV (24-bit)
Input impedance 0.412 GΩ, CMRR: >75 dB, Bandwidth: 0.1 to 131 Hz
Battery: Rechargeable lithium-ion coin cell battery◦Up to 5 hours operating time
Charging via USB micro port
Graphite Metal Oxide (LiNixMNyCozO2)
CE marking: Yes, (Radio Equipment Directive (RED) 2014/53/EU, Directive 2011/65/EU and its amending Directive (EU) 2015/863)
UKCA Labelling: Yes (Radio Equipment Regulation 2017 of 4 December 2017, Restriction of the use of certain hazardous substances in electrical and electronic equipment, Regulation 2012 of 15 November 2016)
X.on is not a medical device. The product may be used in non-medical applications to conduct applied and basic research based on neurophysiological methodology.

Software;
Smartphone App: App for Android™ v10 or higher included;
Compatible with BrainWave Software's PEER app for iOS 14.1 or higher.
The X.on app for Android™ offers:
Functions:
Impedance testing,
data monitoring,
data storage,
streaming to LSL,
test Signal

Additional phone sensors: Yes; e.g. ambient light, barometric pressure, gyroscope, location (GPS)
Data storage: BrainVision core data format (BVCDF, .eeg, .vhdr, .vmrk) on smartphone
Extensible data format (XDF) on the computer via LabStreamingLayer (LSL)
Raw data access
Offline from phone (BVCDF) or from computer (XDF)
Online via LSL
Functionality cannot be guaranteed for every device with a running Android™ v10 or higher Installation.
