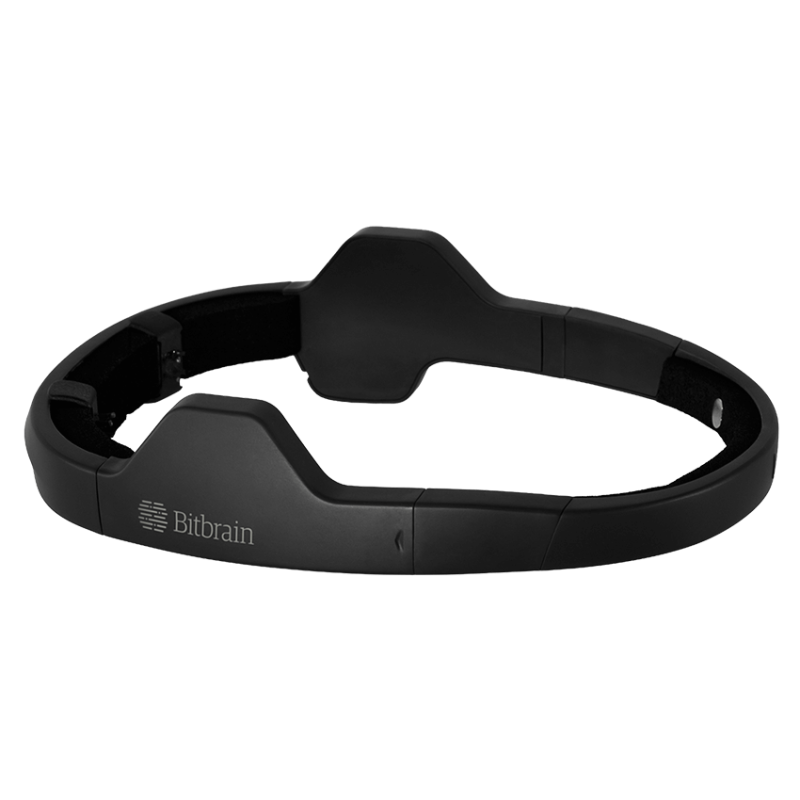

Bitbrain Air
Air is a portable dry EEG device designed for real-world applications that require great comfort and discretion for the user, as well as efficient setup and exceptional signal quality for the researcher. Developed with 8 dry electrodes placed on specific brain areas (prefrontal and occipital), it is optimized for basic assessment of emotional and cognitive states. High-performance active shielding and a stable mechanical design ensure exceptional EEG signal durability and quality, even during movement or long recording periods.
Sensors and headset
EEG channels: 8 x EEG (Fp1, Fp2, AF7, AF8, PO7, PO8, O1, O2), REF (A1) and DRL (Fpz)
Type of sensors / electronics: EEG dry sensors with active shielding and optimized DRL
Head perimeter: 53cm - 61cm
Wireless amplifier
Sampling rate / resolution: 256 SPS at 24 bits
Bandwidth: DC – 40Hz (3º order LPF)
Online / real-time impedance check: Yes (relative contact impedance)
Integrated sensors: Integrated IMU (9 axis): accelerometer, gyroscope and magnetometer
Other inputs: 1 x Digital input (1 bit), 1 x optical trigger
Input range and noise: ±100 mV, < 1 µVRMS (0.5 – 30Hz) @256Hz
CMRR / Input impedance: >100 dB @50Hz, > 50 GΩ
Data backup: Yes (removable µSD card. Max 8GB, class ≥10 )
Data streaming and store
Data transmission and range: Bluetooth 2.1 + EDR with 10 meters in direct sight
Data files: CSV
Power
Battery: Rechargeable lipo battery. Charging time < 3h
Autonomy: > 8h
General
Weight: Headset: 130g, Amplifier: 82g
Maintenance: Wipes moistened in tap water
Warranty: 2 years
Certifications: CE and CB, with EN 60950, EN 55032, EN 55024
Bitbrain Software Kit (included with equipment)
Bitbrain real-time SDK: In C/C++ for Windows and Linux
Bitbrain data acquisition and visualization suite; Live visualization, streaming or SD recording, data export in CSV and raw data visualization
Third parties real-time I/O: LabStreamingLayer LSL compatibility (Matlab, Python, BCI2000, OpenVibe, NeuroPype, etc).
Third parties data processing: Matlab (EEGLAB, FieldTrip, BCILAB, etc), Python (MNE, etc) and more
Bitbrain software platforms (optional)
Bitbrain Human Behaviour Research Lab: Practical research platform for experiment design and data acquisition with 30+ sensor modalities seamlessly synchronized, and analysis with a wide range of emotional and cognitive biometrics available.
Bitbrain Cognitive Training Lab: Software platform for QEEG and cognitive training for health and wellness.
Bitbrain Programming Platform: Multimodal real-time neuroscience or brain-computer interface development.
