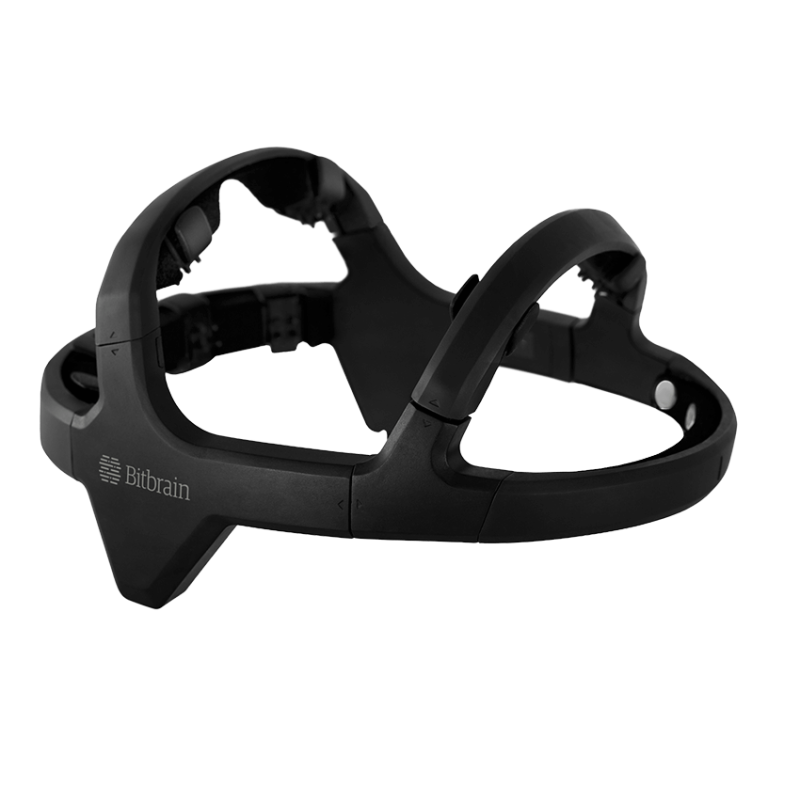

Bitbrain Diadem
Diadem is a portable EEG set designed for real-world applications that require high comfort and discretion for the user, as well as efficient setup and exceptional signal quality for the researcher. Developed from 12 dry EEG electrodes placed on specific brain areas, it is optimized to assess emotional and cognitive states (prefrontal, frontal, parietal and occipital brain areas). High-performance active shielding and a stable mechanical design ensure exceptional EEG signal durability and quality, even during movement or during long recording periods.
The EEG set with a dry electrode is perfect for self-installation or with the help of people, not necessarily technical ones.
EEG channels
EEG Channels: 12 x EEG (Fp1, Fp2, AF7, AF8, F3, F4, P3, P4, PO7, PO8, O1, O2), REF (A1) y DRL (Fpz)
Type of sensors/electronics: EEG dry sensors with active shielding and optimized DRL
Head perimeter: 53 cm - 61 cm
Wireless amplifier
Sampling rate / resolution: 256 SPS at 24 bits
Bandwidth: DC – 40Hz (3º order LPF)
Online / real-time impedance check: Yes (relative contact impedance)
Integrated sensors; Integrated IMU (9 axis): accelerometer, gyroscope magnetometer
Other inputs: 1 x Digital input (1 bit), 1 x optical trigger
Input range and noise: ± 100 mV, < 1 μVRMS (0.5 – 30Hz) @256Hz
CMRR / Input impedance: > 100 dB @50Hz, > 50 GΩ
Data streaming and store
Data transmission and range: Bluetooth 2.1 + EDR with 10 meters in direct sight.
Data backup: Yes (removable µSD card. Max 8GB, class ≥10 )
Power
Battery: Rechargeable lipo battery. Charging time <3h
Autonomy: > 8 hs
General
Weight: Headset: 185g. Amplifier: 122g.
Maintenance: Wipes moistened in tap water.
Warranty: 2 years
Certifications: CE and CB, with EN 60950, EN 55032, EN 55024
Bitbrain software kit (included with equipment)
Bitbrain real-time: SDK In C/C++ for Windows and Linux
Bitbrain data acquisition and visualization suite: Live visualization, streaming or SD recording, data export in CVS and raw data visualization
Third parties real-time I/O: All compatible with LabStreamingLayer LSL (BCI2000, OpenVibe, NeuroPype, etc)
Third parties data processing: Matlab (EEGLAB, FieldTrip, BCILAB,etc), Python (MNE, etc) and more
Bitbrain software platforms (optional)
Bitbrain Human Behaviour Research Lab: Practical research platform for experiment design and data acquisition with 30+ sensor modalities seamlessly synchronized, and to compute a wide range of emotional and cognitive biometrics.
Bitbrain Cognitive Training Lab: Software platform for QEEG and cognitive training for health and wellness
Bitbrain Programming Framework: Multimodal real-time neuroscience or brain-computer interface development
