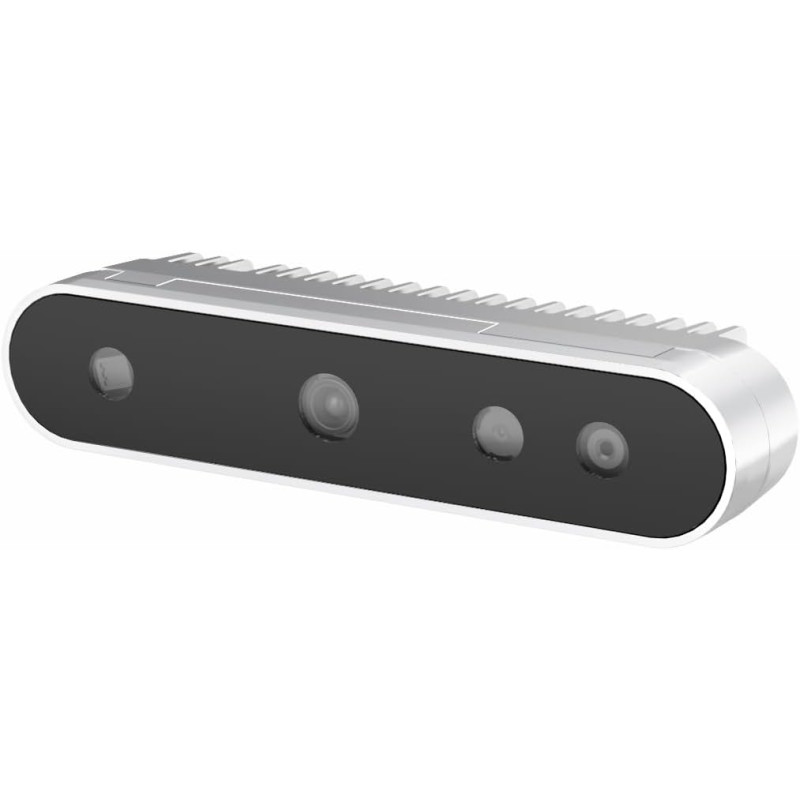

Hiwonder Nuwa-HP60C

Hiwonder Nuwa-HP60C

Hiwonder Binocular Depth Camera Angstrong Nuwa-HP60C Camera ROS Robot 3D Vision Mapping & Navigation

- 3D imaging with structured light,
- accurate depth maps for objects ranging from 0.2 to 4 meters,
- built-in high-performance computing, the camera enhances the robot's obstacle avoidance capabilities, enabling advanced sensing, navigation, and human-robot interaction without the need for additional computing resources,
- supports a variety of applications, including depth information modeling, gesture control, action capture, and other AI functions, making it suitable for a wide range of human-robot interaction scenarios,


Essential parameter

Model: Nuwa-HP60C
Product size: 89.8mm ×19.0mm ×25.0mm
Power dissipation: ＜2W
Joggle: Type C USB 2.0
Operating distance: 0.2~4m (within 2m)
Working temperature: -10~50℃
Storage temperature: -30~80℃
Working humidity: 0~90%RH
power supply mode:USB
VBUS: 4.75~5.25V

Deep precision

Plane accuracy:＜2mm@1000mm
Filling rate(middle 81% area: ＞99.5%@1000mm

Deep image
Resolution / Frame Rate: 640×480@20fps(Max)
FOV: H73.8°×V58.8°×D 86.4°
Transfer image format: RAW16

RGB picture
Resolution / Frame Rate; 1920×1080@20fps(Max)
Recommended: 640360 @ 20 fps, 640480 @ 20 fps
FOV: H80.9°× V 51.7°×D88.9°
Transfer image format; RGB888

After depth map and RGB map alignment, depth map FOV
RGB resolution 640 * 360 condition: H73.8°×V51.7°
RGB resolution at the 640 * 480 condition: H64.4°×V51.7°

safety standard
ESD: ±8kV(contact discharge), > ±15kV(air discharge)
EMI/ EMC - Meet the 3C certification performance standards
Laser safety - Class 1

Development platform
Windows - support
Android - support
Linux - support

Other
service environment: Indoor / outdoor (recommended installation height of 40-50cm)
