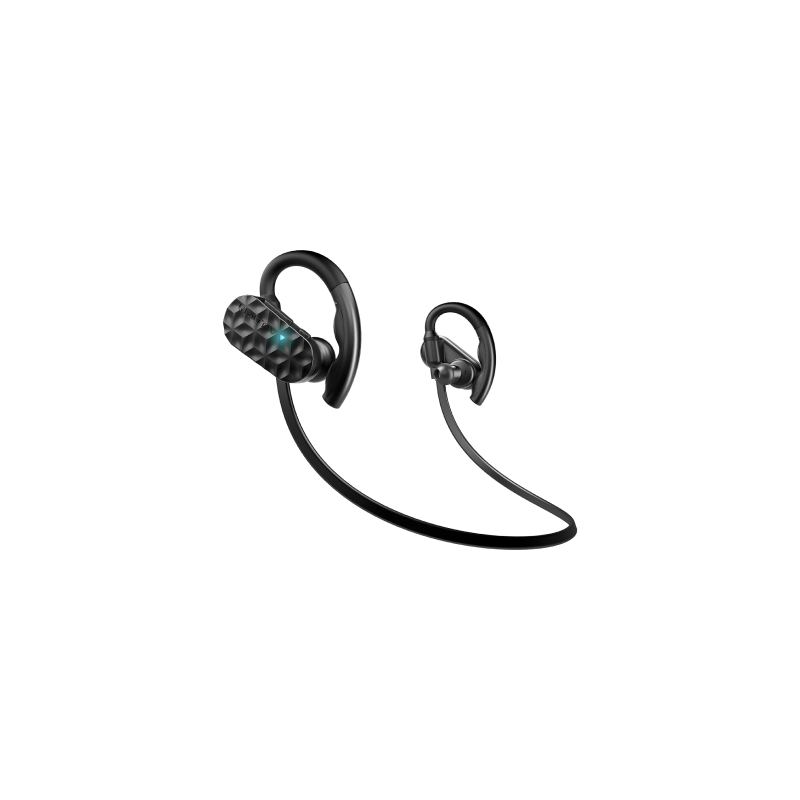

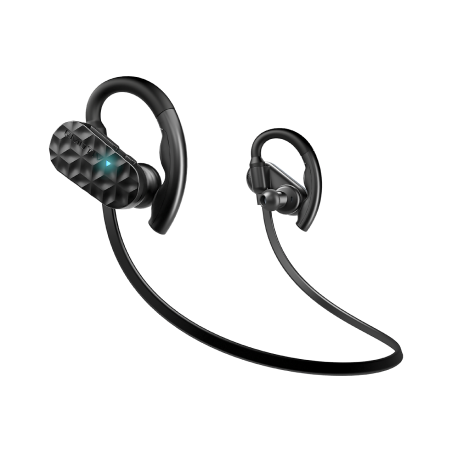

EMOTIV MN8 – 2-Channel Wireless EEG Headphones

EMOTIV MN8 – 2-Channel Wireless EEG Headphones

The EMOTIV MN8 are compact, wireless in-ear headphones equipped with a dual-channel EEG system that allows you to record brain electrical activity during daily activities. The device combines the functionality of wireless headphones with EEG technology, allowing you to simultaneously listen to music, podcasts, participate in calls and meetings, and record EEG signals.

The MN8 utilizes two measurement channels located in the left and right ear canals and four reference points. The dry sensors are made of non-toxic and hypoallergenic conductive elastomer, eliminating the need for gel or saline solution. According to the manufacturer, setup takes less than a minute.

The EEG signal is internally sampled at 8 kHz, filtered, and downsampled to 128 samples per second. The MN8 offers a resolution of 14 bits per channel, a dynamic range of ±4.17 mV, and real-time electrode contact quality monitoring.

An integrated 6-axis motion sensor also records head movement and orientation. The device uses Bluetooth Low Energy and Bluetooth Classic for audio transmission. The built-in microphone allows for phone calls and participation in meetings without interrupting brain activity measurements.

The EMOTIV MN8 can be used for monitoring cognitive performance and concentration, as well as for research and educational projects, and EEG-based applications. The device is compatible with the EMOTIV software ecosystem, including EmotivPRO.

Key Features

Wireless in-ear headphones with EEG measurement
Number of EEG channels: 2
Number of reference points: 4
EEG measurement in the left and right ear canals
Dry EEG sensors
Sensors made of conductive elastomer
Non-toxic sensors
Hypoallergenic sensors
No EEG gel required
No saline solution required
Setup time: less than 1 minute
EEG recording during daily activities
Simultaneous listening and EEG recording
Integrated microphone
Phone calls possible during measurement
Can be used during online meetings
Wireless data transmission
Bluetooth Low Energy
Bluetooth 4.2
Bluetooth Classic for audio transmission
A2DP profile support
HSP profile support
Built-in microphone noise reduction
Built-in 6-axis motion sensor
Head orientation recording
Quaternion data output
Battery life: Up to 6 hours
Full charging time: up to 2 hours
USB charging
Compatible with EMOTIV software
Compatible with EmotivPRO
Real-time monitoring of EEG sensor contact quality
EEG data analysis capability
Monitoring of selected cognitive performance parameters
Designed for mobile use
Adjustable ear hooks
Interchangeable sensors

Technical Specifications

EEG
Number of EEG channels: 2
Number of reference sensors: 4
Measurement channel location: Left and right ear canals
Reference system: Split CMS and split DRL sensors placed behind the ear
Sampling method: Synchronous
Internal sampling rate: 8 kHz
EEG output sampling rate: 128 Hz
EEG resolution: 14 bits per channel
LSB voltage resolution: 0.51 µV
Dynamic range: ±4.17 mV
Input dynamic range: 8400 µV
Frequency response: 0.16–45 Hz
Input coupling: AC
Low-pass filter: 45 Hz
Sensor contact quality monitoring: Real-time
Contact quality monitoring technology: Patented EMOTIV system

EEG sensors
Technology: Dry sensors In-ear
Material: Conductive elastomer
Non-toxic material: Yes
Hypoallergenic material: Yes
Replaceable sensors: Yes
EEG gel required: Not required
Saline solution required: Not required

Motion sensor
Sensor type: 6-axis IMU
IMU chip: ICM-20648
Orientation output: 4 quaternions
Motion data sampling rate: 6.4 Hz
Motion data resolution: 10 bits
Head movement detection capability: Yes

Connectivity
EEG communication: Bluetooth Low Energy
Bluetooth standard: Bluetooth 4.2
Audio transmission: Bluetooth Classic
Audio profile: A2DP
Headset profile: HSP
USB: USB 2.0
EEG transmission via USB: No
USB intended for: Charging and firmware updates

Audio and communication
Stereo headphones: Yes
Wireless audio transmission: Yes
Ability to play music: Yes
Ability to play podcasts and audiobooks: Yes
Integrated microphone: Yes
Number of microphone channels: 1
Microphone noise reduction: CVC
Ability to make phone calls: Yes
EEG measurement during calls and meetings: Yes

Power supply: Built-in battery
Battery type: Lithium-polymer
Battery capacity: 160 mAh
Declared operating time: Up to 6 hours
Charging time: Up to 2 hours
Rechargeable battery: Yes
USB charging: Yes

Monitored Parameters

The current EMOTIV ecosystem for MN8 includes parameters related to cognitive performance, including:
cognitive load
attention
cognitive stress
monitoring changes in parameters over time
concentration monitoring
analysis of productivity periods
analysis of responses to breaks and breathing exercises

The availability of specific indicators, their update frequency, and the ability to export data depend on the application used and the license.

Software
The device works with EMOTIV software.
EMOTIV mobile app support.
Compatible with EmotivPRO.
Purchasing the MN8 includes access to EmotivPRO Lite, as currently offered by the manufacturer.
EmotivPRO enables EEG data recording and analysis.
Access to raw EEG data and advanced features may depend on your license.
Mobile apps are available for iOS and Android.
Minimum mobile system requirements according to the manufacturer's instructions: iOS 13 or later.
Minimum mobile system requirements according to the manufacturer's instructions: Android 7.0 or later.
The manufacturer also provides software for Windows and macOS.
MN8 is not supported by Ubuntu.
MN8 is not supported by Raspberry Pi.
EmotivPRO can be run locally; cloud and AI features are optional.
Apps using the Cortex API require an EMOTIV account and authorization.
