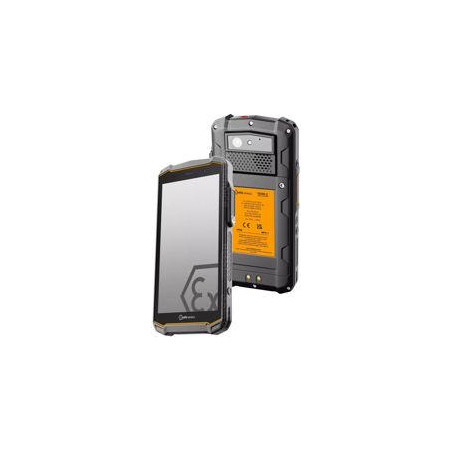

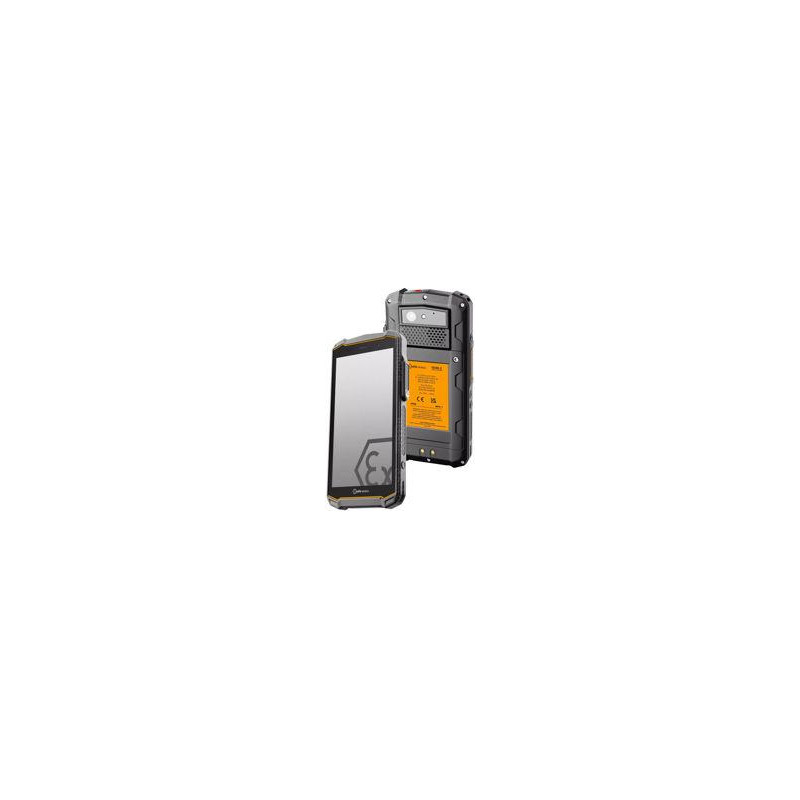

i.safe MOBILE IS540.2 – smartfon ATEX / IECEx Zone 2/22 5G

i.safe MOBILE IS540.2 – 5G ATEX / IECEx Zone 2/22 Smartphone

The i.safe MOBILE IS540.2 is a professional, intrinsically safe 5G industrial smartphone designed for use in Zone 2 and Zone 22 hazardous areas. The device is ATEX and IECEx certified and combines the high performance of a modern smartphone with a design prepared for demanding industrial applications.

The IS540.2 runs Android 14 and utilizes a powerful Qualcomm QCM6490 Octa Core processor, 8 GB of RAM, and 128 GB of internal memory. 5G, Wi-Fi 6, Bluetooth 5.2, and NFC connectivity enable the phone to be used as a mobile terminal for communication, documentation, maintenance, technical inspections, and IIoT applications.

The smartphone features a 6-inch Full HD screen protected by Corning Gorilla Glass 3, a 48 MP main camera, a removable 4400 mAh battery, and a multifunctional 16-pin ISM interface for securely connecting approved accessories.

ATEX Zone 2/22 Smartphone with 5G Connectivity

The i.safe MOBILE IS540.2 is designed for use in areas classified as Zone 2 for gases and Zone 22 for dust.

The device can be used in applications such as:

chemical industry
petrochemical industry
oil and gas industry
energy industry
pharmaceutical industry
manufacturing plants
industrial automation
maintenance
warehousing and logistics
technical inspections
field service
photographic documentation
IIoT applications
Industry 4.0 solutions
private and industrial 5G networks
ATEX and IECEx Zone 2/22 certification

The i.safe MOBILE IS540.2 has approved ATEX and IECEx certifications.

Ex markings:

ATEX gas: II 3G Ex ic IIC T4 Gc
ATEX dust: II 3D Ex ic IIIC T135°C Dc
IECEx gas: Ex ic IIC T4 Gc
IECEx dust: Ex ic IIIC T135°C Dc
Gas zone: Zone 2
Dust zone: Zone 22
Gas group: IIC
Temperature class: T4
Maximum surface temperature for dust: T135°C
Device protection level for gas: Gc
Device protection level for dust: Dc

i.safe MOBILE IS540.2 Technical Specifications

Manufacturer: i.safe MOBILE GmbH
Model: IS540.2
Technical Model: M540A01
Country of Manufacture/Technology Origin: Germany
Device Type: Intrinsically Safe 5G Industrial Smartphone
Intended Use: ATEX / IECEx Zone 2/22
Operating System: Android 14
Processor: Qualcomm QCM6490 Octa Core
RAM: 8 GB
Internal Memory: 128 GB
Memory Expansion: MicroSD Card Support
Screen: 6.0"
Diagonal: 15.24 cm
Resolution: 1080 × 2160 pixels
Resolution Class: Full HD
Protective Glass: Corning Gorilla Glass 3
Screen Operation with Gloves: Yes
Main Camera: 48 MP AF
Front Camera: 5 MP FF
Battery: 4400 mAh
Battery voltage: 3.7 V
Removable battery: yes
5G: yes
4G LTE: yes
3G: yes
2G: yes
Wi-Fi: Wi-Fi 6
Wi-Fi standard: IEEE 802.11 a/b/g/n/ac/e/k/r/ax/v
Wi-Fi hotspot: yes
Bluetooth: 5.2
NFC: yes
GPS: yes
A-GPS: yes
GLONASS: yes
A-GLONASS: yes
BeiDou: yes
Galileo: yes
SIM: Nano-SIM + eSIM
Dual SIM: yes
USB: USB-C
Charging contacts: yes
Accessory interface: 16-pin ISM
Programmable red button: yes
Programmable side button: yes
Amplified speaker: yes
Accelerometer: yes
Gyroscope: Yes
Light sensor: Yes
Magnetic sensor: Yes
Proximity sensor: Yes
Pressure sensor: Yes
Ingress protection: IP68
Resistance: MIL-STD-810H
Operating temperature: -20°C to +55°C
Dimensions: 180.0 × 84.9 × 20.6 mm
Weight: 422 g

Supported network bands
2G GSM: 850/900/1800/1900MHz
3G WCDMA: B1/B2/B4/B5/B8
4G LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12 MFBI/B13/B14/B17/B20/B25/B26/B28/B29/B30/B66/B71
4G LTE-TDD: B38/B39/B40/B41/B42/B43/B48
5G NR: n1 / n2 / n3 / n5 / n7 / n8 / n12 / n14 / n20 / n25 / n28 / n30 / n38 / n40 / n41 / n48 / n66 / n71 / n77 / n78 / n79

Certificates and approvals
ATEX – Zone 2/22
II 3G Ex ic IIC T4 Gc
II 3D Ex ic IIIC T135°C Dc
IECEx – Zone 2/22
Ex ic IIC T4 Gc
Ex ic IIIC T135°C Dc
NEC500 – North America
Class I Division 2 Groups A, B, C, D, T4
Class II Division 2 Groups F, G, T4
Class III Division 2, T4
PCEC – China
Ex ic IIC T4 Gc
Ex ic IIIC T135°C Dc
TIIS – Japan
Ex ic IIC T4 Gc
Ex ic IIIC T135°C Dc
KCs – South Korea
Ex ic IIC T4
IA – South Republic Africa
Ex ic IIC T4 Gc
Ex ic IIIC T135°C Dc

Kit Contents
i.safe MOBILE IS540.2 smartphone
Replaceable 4400 mAh battery
USB-C cable
Universal power supply
Screwdriver
Display protective film
Quick Start Guide
Safety instructions

16-pin ISM Interface – Expandable with Industrial Accessories

One of the IS540.2's key features is the multi-function 16-pin ISM interface, which allows for the connection of approved i.safe MOBILE accessories.

Available accessories include:

Headsets
Speaker microphones
External push-to-talk buttons
Charging systems
Docking stations
Multi-unit chargers
Additional batteries
Mounting systems
Cases and mounts

Direct connection via the ISM interface allows for configuration tailored to the specific needs of a specific workstation.

IS540.2 with a barcode reader

The IS540.2 can also be used with the specialized i.safe MOBILE IS-TH2ER.2 scanning mount designed for Zone 2/22.

The solution utilizes the professional Zebra SE55 scanning module with IntelliFocus technology and allows for the reading of 1D and 2D codes from long distances.

Connecting the IS540.2 with a scanning module allows you to use your smartphone as a mobile terminal for various purposes, including:

warehouse
logistics
production
service
fixed asset identification
inventory control
1D and 2D barcode support

Push-to-Talk, PoC, and Worker Safety

The programmable side button of the IS540.2 can be assigned to functions such as PoC/PTT – Push-to-Talk over Cellular / Push-to-Talk.

This allows the smartphone to be used similarly to a professional communications terminal.

The red function button can be configured in the appropriate software for functions such as:

SOS function
Lone Worker Protection
Alert
Emergency communication
Launching a specific application
5G Smartphone for Industry 4.0 and IIoT

The combination of the powerful Qualcomm platform, Android 14, 5G, and Wi-Fi 6 enables the i.safe MOBILE IS540.2 to be used as a professional mobile terminal.

The device can support:

digital work orders
CMMS applications
EAM systems
electronic documentation
predictive maintenance
inspection applications
IIoT systems
PoC/PTT communication
private 5G networks
mobile access to IT and OT systems
image and field data capture

i.safe MOBILE IS540.2 – a modern smartphone for Zone 2/22 hazardous areas

The IS540.2 combines the capabilities of a modern Android smartphone with the solutions required in industrial hazardous areas.

ATEX and IECEx Zone 2/22 certification, 5G connectivity, Android 14, Qualcomm QCM6490, 8 GB RAM, a 48 MP camera, Wi-Fi 6, a replaceable battery, and a 16-pin industrial interface make the device suitable for both a professional phone and a mobile terminal for managing industrial processes.

The IS540.2 is a particularly interesting solution for companies in the chemical, petrochemical, energy, manufacturing, logistics, and oil & gas sectors that require modern mobile devices directly in Zone 2/22 zones.
