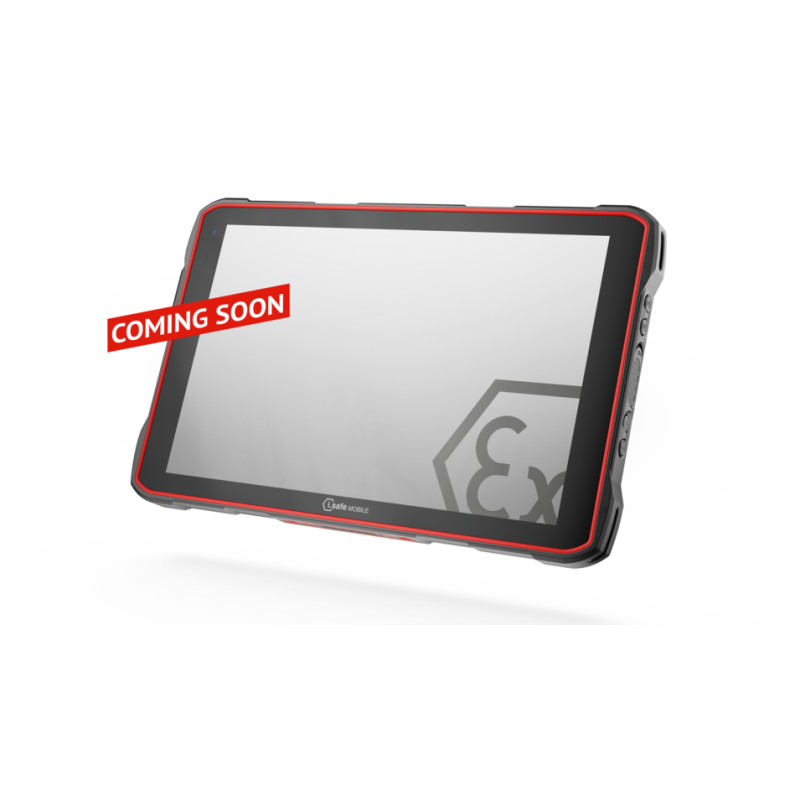

i.safe MOBILE IS940.2 – tablet ATEX / IECEx Zone 2/22 5G

i.safe MOBILE IS940.2 – 5G ATEX/IECEx Zone 2/22 Tablet with Android 14

The i.safe MOBILE IS940.2 is a professional, intrinsically safe 10.1" industrial tablet designed for use in Zone 2 and Zone 22 hazardous areas. The device is ATEX and IECEx certified and designed for data communications, industrial automation, manufacturing processes, and IIoT (Industrial Internet of Things) applications.

The tablet combines Android 14, a powerful Qualcomm QCM6490 Octa Core processor, 8 GB of RAM, and 128 GB of internal memory with support for 5G, Wi-Fi 6, Bluetooth 5.2, and NFC.

The large 10.1" screen, protected by Corning Gorilla Glass 3, can be operated while wearing gloves. A replaceable 8160 mAh battery, IP68 protection, and MIL-STD-810H-compliant durability allow the IS940.2 to be used in demanding industrial environments.

ATEX Zone 2/22 Tablet for Industrial Applications

The i.safe MOBILE IS940.2 was designed for businesses requiring a modern Android tablet in locations classified as Zone 2 for gases and Zone 22 for dust.

The device can be used in applications such as:

chemical industry
petrochemical industry
oil and gas industry
energy industry
pharmaceutical industry
manufacturing plants
industrial automation
maintenance
industrial logistics
field service
technical inspections
IIoT systems
Industry 4.0 solutions
digital technical documentation
industrial and private 4G/5G networks
ATEX and IECEx Zone 2/22 certification

The IS940.2 is certified for potentially explosive gas and dust atmospheres.

Ex markings:

ATEX gas: II 3G Ex ic IIC T4 Gc
ATEX dust: II 3D Ex ic IIIC T135°C Dc
IECEx gas: Ex ic IIC T4 Gc
IECEx dust: Ex ic IIIC T135°C Dc
Gas zone: Zone 2
Dust zone: Zone 22
Protection type: Ex ic
Gas group: IIC
Temperature class: T4
Maximum surface temperature for dust: T135°C

The tablet also has approvals for selected international markets, including NEC500 for North America, IA for South Africa, and KCs for South Korea.

Rugged IP68 and MIL-STD-810H design

The tablet is designed for demanding industrial environments.

The IS940.2 offers:

IP68 protection
MIL-STD-810H resistance
Operating temperature range: -20°C to +55°C
Corning Gorilla Glass 3 display
Glove-friendly
Amplified speaker for use in noisy environments
Replaceable battery

i.safe MOBILE IS940.2 Technical Specifications

Manufacturer: i.safe MOBILE GmbH
Model: IS940.2
Country of manufacture/technology origin: Germany
Device type: Intrinsically safe 5G industrial tablet
Intended use: ATEX / IECEx Zone 2/22
Operating system: Android 14
Processor: Qualcomm QCM6490 Octa Core
RAM: 8 GB
Internal memory: 128 GB
Memory expansion: microSD card support
Screen: 10.1"
Screen diagonal: 25.654 cm
Protective glass: Corning Gorilla Glass 3
Screen operation with gloves: yes
Main camera: 50 MP AF
Front camera: 5 MP FF
Battery: 8160 mAh
Battery voltage: 3.7 V
Removable battery: yes
5G: yes
4G LTE: Yes
Wi-Fi: Wi-Fi 6 IEEE 802.11 a/b/g/n/ac/e/k/r/ax/v
Wi-Fi hotspot: Yes
Bluetooth: 5.2
NFC: Yes
GPS: Yes
A-GPS: Yes
GLONASS: Yes
A-GLONASS: Yes
BeiDou: Yes
Galileo: Yes
SIM: Nano-SIM + eSIM
Dual SIM: Yes
USB: USB-C
Accessory interface: 16-pin ISM
Docking station interface: 12-pin
Mounting: VESA 100
Speaker: Amplified
Programmable red button: Yes
Programmable side buttons: Yes
Accelerometer: Yes
Gyroscope: Yes
Light sensor: Yes
Magnetic sensor: Yes
Proximity sensor: Yes
Pressure sensor: Yes
Ingress protection: IP68
Resistance: MIL-STD-810H
Operating temperature: -20°C to +55°C
Dimensions: 266.0 × 168.6 × 19.5 mm
Weight: 1059 g

4G and 5G bands supported
4G LTE-FDD: B1 / B2 / B3 / B4 / B5 / B7 / B8 / B12 MFBI / B13 / B14 / B17 / B20 / B25 / B26 / B28 / B29 / B30 / B66 / B68 / B71
4G LTE-TDD: B38/B39/B40/B41/B42/B43/B48
5G NR: n1 / n2 / n3 / n5 / n7 / n8 / n12 / n14 / n20 / n25 / n28 / n30 / n38 / n40 / n41 / n48 / n66 / n71 / n77 / n78 / n79

Certificates i Approvals
ATEX – Zone 2/22
II 3G Ex ic IIC T4 Gc
II 3D Ex ic IIIC T135°C Dc
IECEx – Zone 2/22
Ex ic IIC T4 Gc
Ex ic IIIC T135°C Dc
NEC500 – North America
Class I Division 2 Groups A, B, C, D, T4
Class II Division 2 Groups F, G
Class III
IA – South Africa
KCs – South Korea
IP68
MIL-STD-810H

Kit Contents
i.safe MOBILE IS940.2 Tablet
Replaceable 8160 mAh Battery
USB-C Cable
Hand Strap
Display Protective Film
Screwdriver
Safety Instructions

Extensive Industrial Interfaces

The IS940.2 is equipped with a 16-pin ISM interface for connecting approved peripherals.

An additional 12-pin docking station interface allows for integration with compatible docking systems.

The tablet also features a VESA 100 mount, allowing it to operate both as a mobile device and as part of a stationary or semi-stationary industrial workstation.

i.safe MOBILE Accessories

The IS940.2 is compatible with the extensive i.safe MOBILE accessories system, including:

docking stations
multi-station chargers
headsets
external push-to-talk buttons
mounting systems
vehicle mounts
industrial cases
straps and carrying systems
stylus
additional screen protectors

This allows you to customize the device's configuration to your specific industrial application.

i.safe MOBILE IS940.2 in Industry 4.0 and IIoT

The combination of Android 14, a Qualcomm QCM6490 processor, 5G, and Wi-Fi 6 allows the IS940.2 to be used as a mobile terminal in enterprise digitalization projects.

The tablet can support, among other things:

maintenance systems
digital work orders
CMMS systems
EAM systems
inspection applications
technical documentation
production control
process reporting
IIoT applications
mobile access to enterprise systems
private 5G networks
field worker communication

i.safe MOBILE IS940.2 – 5G Tablet for Zone 2/22 Explosion-Proof Areas

The i.safe MOBILE IS940.2 combines the capabilities of a modern Android tablet with a design designed for use in explosion-hazardous areas.

ATEX and IECEx Zone 2/22 certification, Android 14, Qualcomm QCM6490, 8 GB RAM, 5G, Wi-Fi 6, a 50 MP camera, a replaceable 8160 mAh battery, and extensive industrial interfaces enable the device to be used as a professional mobile terminal in demanding work environments.

The IS940.2 is a solution designed specifically for companies in the chemical, petrochemical, energy, manufacturing, and oil & gas sectors that are developing digital processes, IIoT, and mobile data access directly in areas classified as Zone 2/22.
