Atexxo EX Zone 2 iPhone 17

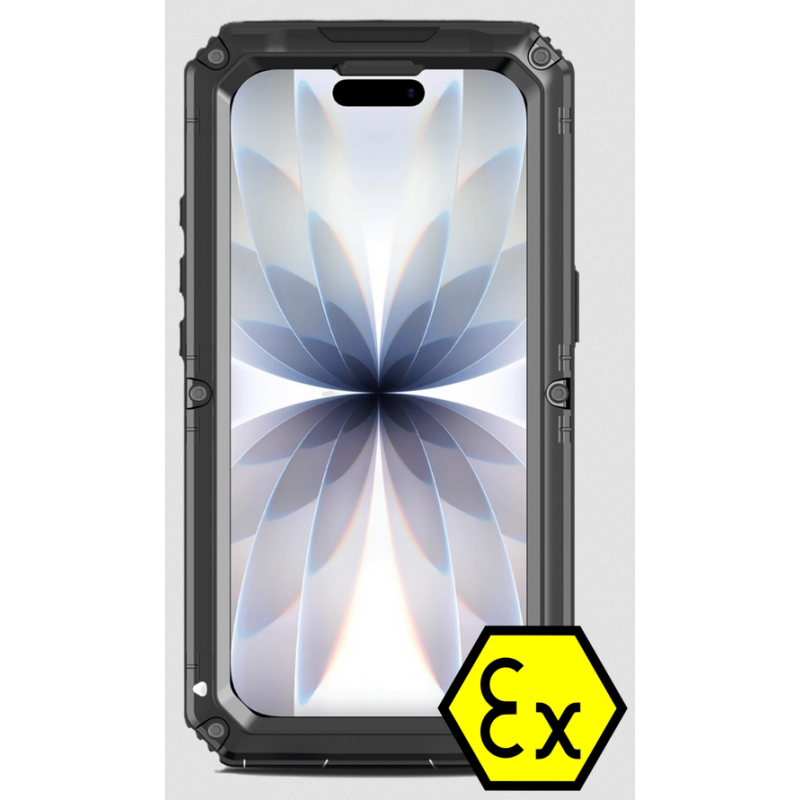

Atexxo iPhone 17 ATEX – Ex Zone 2/22 Smartphone

The Atexxo Ex Zone 2 iPhone 17 is a specialized, explosion-proof version of the Apple iPhone 17 designed for use in Zone 2 and Zone 22 hazardous areas. The original Apple smartphone undergoes specialized modifications to its housing design and electrical system by Atexxo Manufacturing, and is then certified in accordance with ATEX requirements.

As a result, users receive a modern ATEX iPhone 17 that can be used in environments with a risk of gases, vapors, and flammable dust, while maintaining the functionality of the standard iPhone 17.

The device offers, among other features, an Apple A19 processor, a 6.3" Super Retina XDR OLED display, 5G connectivity, Wi-Fi 7, Bluetooth 6, NFC, Face ID, and an advanced dual-camera system with 48 MP Fusion.

iPhone 17 for Zone 2/22 explosion-hazardous areas

The standard Apple iPhone 17 is not intended for use in explosion-hazardous areas.

Atexxo Manufacturing performs modifications to the device, including appropriate changes to the housing design and electrical circuit protection. The complete device undergoes the conformity assessment procedure required for Ex applications.

The Atexxo iPhone 17 Zone 2/22 can be used in:

Zone 2 gas zone
Zone 2 dust zone
Factory locations Chemical
Petrochemical industry
Refineries
Oil and gas industry
Offshore environments
Hazardous materials storage
Pharmaceutical industry
Cleanrooms
Power industry
Maintenance
Field service
Technical inspections
Photographic and video documentation

ATEX Zone 2/22 Certification

The Atexxo iPhone 17 is ATEX certified for use in Zones 2 and 22.

Ex markings:

Zone 2: II 3G Ex ec ic IIC T4 Gc
Zone 22: II 3D Ex tc IIIB T85°C Dc
Gas category: II 3G
Dust category: II 3D
Gas group: IIC
Temperature class for gas: T4
Maximum surface temperature for dust: T85°C
Gas device protection level: Gc
Dust device protection level: Dc
Certification: ATEX Unit Assessment Certificate

The Zone 2/22 version is designed for areas where an explosive atmosphere does not occur during normal operation or, if it does occur, persists only for a short time.

Apple iPhone 17 – Performance in an Industrial Environment

The device is based on the current generation Apple iPhone 17 equipped with the Apple A19 processor.

The system includes:

6-core CPU
5-core GPU
16-core Neural Engine
Hardware ray tracing acceleration

High performance enables the use of business and industrial applications, mobile maintenance systems, electronic documentation, video conferencing, team communications, and tools using Apple Intelligence.

6.3" Super Retina XDR Display

The iPhone 17 features a 6.3" Super Retina XDR OLED display. Key Specifications:

Diagonal: 6.3"
Technology: OLED
Resolution: 2622 × 1206 pixels
460 ppi
ProMotion
Adaptive refresh rate up to 120 Hz
Always-On Display
HDR
True Tone
Peak brightness up to 3000 nits outdoors

The high screen brightness makes the device easy to use during field work and in brightly lit industrial environments.

Fusion 48MP Dual Camera System

The Atexxo iPhone 17 retains the advanced camera system of the Apple device.

Equipment includes:

Fusion 48MP main camera
Fusion 48MP ultra-wide-angle camera
2x optical zoom
48MP macro photography
18MP Center Stage front camera
4K Dolby Vision video recording
Image stabilization
Night mode
HDR

Thanks to its certified Ex design, the smartphone can be used as a mobile camera for documenting work, installations, faults, and inspections directly in Zone 2/22.

5G, Wi-Fi 7, and Bluetooth 6 connectivity

Atexxo retains the communication functionality of the base iPhone 17.

The device supports:

5G ​​networks
4G LTE
Wi-Fi 7
Bluetooth 6
NFC
Thread
GPS
GLONASS
Galileo
BeiDou
NavIC
QZSS
eSIM
Physical SIM card depending on the device variant

This allows the Atexxo iPhone 17 to work with existing enterprise mobile infrastructure and company device management systems.

Technical Specifications of the Atexxo Ex Zone 2 iPhone 17

Ex solution manufacturer: Atexxo B.V. / Atexxo Manufacturing
Ex Solution Manufacturer Country: Netherlands
Base Device: Apple iPhone 17
Operating System: Apple iOS
Processor: Apple A19
CPU: 6-core
GPU: 5-core
Neural Engine: 16-core
Screen: Super Retina XDR
Screen Technology: OLED
Diagonal: 6.3"
Screen Resolution: 2622 × 1206 pixels
Density: 460 ppi
Refresh Rate: ProMotion up to 120 Hz
Always-On Display: Yes
Main Camera: Fusion 48 MP
Ultra-Wide Camera: Fusion 48 MP
Front Camera: Center Stage 18 MP
Optical Zoom: 2x
Video Recording: Up to 4K Dolby Vision
Memory: 256 GB or 512 GB
Mobile Network: 5G
Wi-Fi: Wi-Fi 7
Bluetooth: Bluetooth 6
NFC: yes
Thread: yes
Face ID: yes
GPS: yes
GLONASS: yes
Galileo: yes
BeiDou: yes
NavIC: yes
QZSS: yes
Connector: USB-C
Wired charging: USB-C
Wireless charging: yes
Ex housing color: black
Dimensions of the complete device: 90 × 168 × 15 mm
Weight of the complete device: approx. 285 g

Explosion-proof specifications

Certification: ATEX
Gas zone: Zone 2
Dust zone: Zone 22
Gas marking: II 3G Ex ec ic IIC T4 Gc
Dust marking: II 3D Ex tc IIIB T85°C Dc
Device group: II
Gas category: 3G
Dust category: 3D
Gas group: IIC
Dust group: IIIB
Gas temperature class: T4
Maximum dust surface temperature: T85°C

Available models: Atexxo iPhone 17 Zone 2/22

MOB-EX-IPH-17-256

Apple iPhone 17
Zone 2/22
Memory: 256 GB
Dimensions: 90 × 168 × 15 mm

MOB-EX-IPH-17-512

Apple iPhone 17
Zone 2/22
512 GB memory
Dimensions: 90 × 168 × 15 mm

MOB-EX-IPH-17-*

Conversion of a new iPhone 17 provided by the customer
Apple DEP / Apple Business Manager support available
Conversion available only for new devices
Zone 2/22 certification
iPhone 17 Pro and Pro Max versions also available

Atexxo also offers versions in the Zone 2/22 family based on the iPhone 17 Pro and iPhone 17 Pro Max.

iPhone 17 Pro Zone 2/22:

256 GB
512 GB
1 TB
Dimensions of the complete device: 90 × 173 × 15 mm

iPhone 17 Pro Max Zone 2/22:

256 GB
512 GB
1 TB
2 TB
Complete device dimensions: 95 × 175 × 15 mm

These are separate product variants and should not be confused with the standard Atexxo iPhone 17 described on this page.

Atexxo iPhone 17 Zone 2/22 Applications

The Atexxo iPhone 17 is particularly suitable for:

petrochemical plants
chemical industry
offshore installations
oil and gas industry
hazardous materials storage
clean rooms
pharmaceutical industry
energy industry
manufacturing plants
technical inspections
maintenance
service work
photographic documentation
video recording in hazardous areas
Atexxo iPhone 17 – a modern ATEX Zone 2/22 smartphone

The Atexxo iPhone 17 allows you to take advantage of the modern Apple ecosystem even in environments requiring devices certified for explosion-hazardous areas.

The combination of the ATEX Zone 2/22, A19 processor, 5G, Wi-Fi 7, Bluetooth 6, 48 MP Fusion cameras, Face ID, and iOS gives the user the functionality of a standard premium smartphone in a specialized design developed by Atexxo for Ex applications.

Compared to the Atexxo Zone 1/21 version, the Zone 2/22 model is significantly lighter and slimmer – the complete device weighs approximately 285 g and is approximately 15 mm thick.

Before purchasing, verify the hazard zone classification at the location of use. Zone 2/22 and Zone 1/21 are separate device versions and are not interchangeable.
