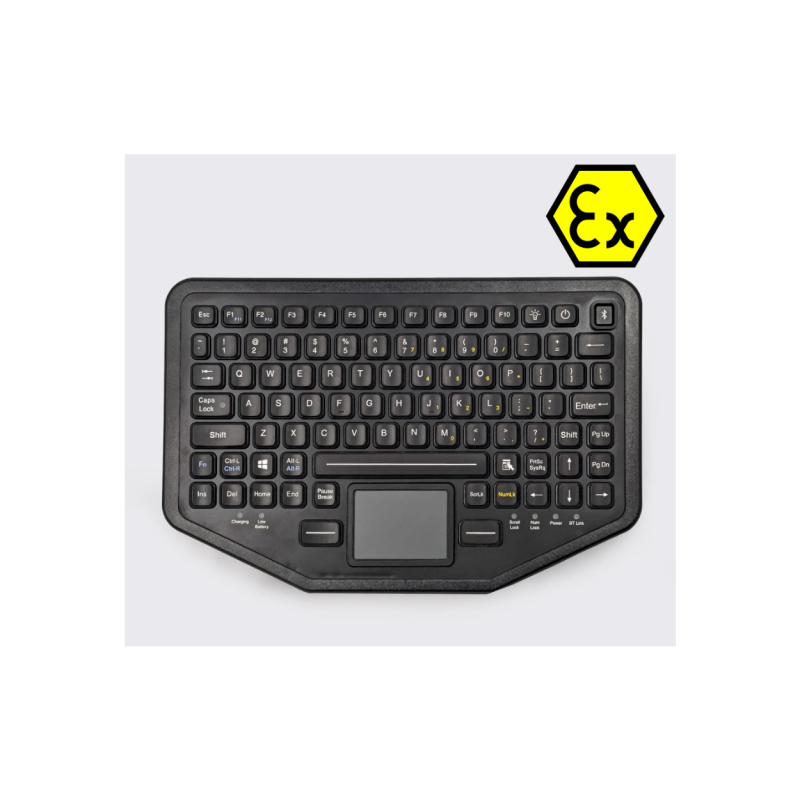

Armadex Ex BT-Key-02 – ATEX / IECEx Zone 2/22 Bluetooth Keyboard with Touchpad

The Armadex Ex BT-Key-02 is a professional, intrinsically safe Bluetooth keyboard designed for use in ATEX and IECEx Zone 2/22 hazardous areas. It enables convenient data entry using computers, laptops, tablets, and smartphones used in industrial environments where standard peripherals cannot be safely used.

The keyboard is ATEX and IECEx certified and is based on the industrial iKey BT-870-TP platform. It features a silicone keypad with a durability exceeding 10 million cycles, a built-in touchpad, wireless Bluetooth connectivity, and a 3000 mAh lithium-ion battery.

The durable ABS/polycarbonate housing and sealed silicone key surface are designed for harsh industrial environments and frequent cleaning.

ATEX and IECEx Keyboard for Zone 2/22

The Armadex Ex BT-Key-02 is certified for use in:

Zone 2 gas zone
Zone 2 dust zone
Industrial environments at risk of gases and vapors
Areas at risk of flammable dust

The keyboard can be used with appropriately certified Ex devices, such as:

ATEX tablets
ATEX laptops
Industrial computers
ATEX smartphones
Ex telephones
Industrial operator panels
Workstations used in explosion-hazardous areas

ATEX / IECEx Certification

Current Armadex Ex BT-Key-02 explosion-proof markings:

ATEX gas: II 3G Ex ic IIC T6 Gc
ATEX dust: II 3D Ex ic IIIB T85°C Dc
IECEx gas: Ex ic IIC T6 Gc
IECEx dust: Ex ic IIIB T85°C Dc
Gas zone: Zone 2
Dust zone: Zone 22
Protection type: Ex ic – intrinsic safety
Gas group: IIC
Temperature class for gases: T6
Maximum surface temperature for dust: T85°C
Gas device protection level: Gc
Dust device protection level: Dc

Certificate numbers:

ATEX: KSCP 24ATEX0009 X
IECEx: IECEx KSCP 24.0011X
ATEX directive: 2014/34/EU

Built-in Touchpad

The Armadex Ex BT-Key-02 features an integrated touchpad, allowing the user to operate the cursor without the need for an additional mouse.

This is particularly important when working with:
industrial laptops
tablets mounted in docking stations
operator computers
devices with a screen that is not directly accessible to the user

The combination of a full keyboard and touchpad allows for the creation of a compact data entry workstation without the need for additional pointing devices.

Bluetooth – Wireless Operation up to 10 Meters

The keyboard uses Bluetooth communication.

The manufacturer declares a maximum wireless range of approximately:
10 meters
30 feet

After a temporary loss of range, the connection can be automatically reestablished by bringing the device closer to the host again.

The pairing process is simplified and can be completed quickly using the dedicated Bluetooth button.

Compatibility with Windows, Android, iOS, and macOS

The BT-Key-02 can be used with a wide range of Bluetooth-enabled devices.

The manufacturer indicates compatibility with, among others:
Microsoft Windows
Android
iOS
macOS

The keyboard can be used with:
desktop computers
laptops
Windows tablets
Android tablets
Android smartphones
Apple devices
industrial mobile computers

In hazardous areas, the keyboard should only be connected to a device that has been appropriately approved for use in that area.

Industrial Silicone Keyboard

The keys are made of Industrial Silicone Rubber.

The manufacturer declares a lifespan of:
over 10 million cycles

Key Characteristics:
Material: Industrial silicone rubber
Key travel: 0.055"
Activation force: 200 g ±30 g
Feedback: tactile, mechanical
Durability: over 10 million presses

The silicone surface reduces the accumulation of dirt and moisture between the keys.

Clean Mode – easier keyboard cleaning

The BT-Key-02 features a special Clean Mode that makes cleaning the device easier.

When this mode is activated, the keys are temporarily deactivated. This allows the surface to be wiped without accidentally:
typing characters
running commands
closing applications
changing settings
performing accidental system operations

This is particularly useful in:

the pharmaceutical industry
food production
laboratories
environments requiring regular equipment disinfection
factories with high cleanliness requirements

Cleaning and other activities maintenance should be performed in accordance with the manufacturer's instructions and E certification requirements

Armadex Ex BT-Key-02 Technical Specifications

Manufacturer: Armadex Explosion Protection B.V.
Brand: Armadex
Model: Ex BT-Key-02
Device type: Intrinsically safe industrial Bluetooth keyboard
Manufacturer's country/technology origin: Netherlands
Application: ATEX / IECEx Zone 2/22
Base design: iKey BT-870-TP
Wireless communication: Bluetooth
Maximum Bluetooth range: approx. 10 m
Built-in touchpad: Yes
Charging interface: Micro USB
Compatibility: Windows / Android / iOS / macOS
Key material: Industrial silicone rubber
Key durability: Over 10 million cycles
Key travel: 0.055"
Activation force: 200 g ±30 g
Feedback: Tactile / mechanical snap
Clean Mode: Yes
Housing: ABS / polycarbonate
Power supply: Lithium-ion battery
Battery capacity: 3000 mAh
Voltage: 3.7 V DC
Rated discharge current: 30 mA
Declared operating time with average use: approximately 3 weeks
Full charging time: approximately 5 hours
Charging in Ex zones: Not permitted
Operating temperature: 0°C to +60°C
Storage temperature: -40°C to +70°C
Humidity resistance: up to 100% according to the manufacturer's specifications
Shock resistance: 3 × 11 ms, 50 g pulse on each of the 3 axes
Width: 30.5 cm
Depth: 19.5 cm
Height: approximately 5 cm
Weight: 0.54 kg ±0.05 kg
Color: Black
Key markings: White
Fn function markings: Blue
Manufacturer's warranty: 1 year

Armadex Ex BT-Key-02 Applications

The keyboard is intended for applications including:

Industry Oil and gas
Petrochemical industry
Chemical plants
Pharmaceutical industry
Food industry
Refineries
Energy
Production plants
Laboratories
Hazardous materials warehouses
Operator stations
Maintenance
Field service
Technical inspections
Data entry in Ex zones
Operation of ATEX tablets and laptops
Mobile computer workstations
