VRTRIX Data Glove

VRTRIX Inc. is a high-tech company providing professional integrated solutions for virtual reality technology. The solutions are used in various fields, including entertainment, education, training and simulation.

Products:
- VRTRIX® Data Glove
- VRTRIX® Sword & Shield
- VRTRIX® Simulation Fire Extinguisher (fire training)
- Indoor Compass Sensor Tracking System

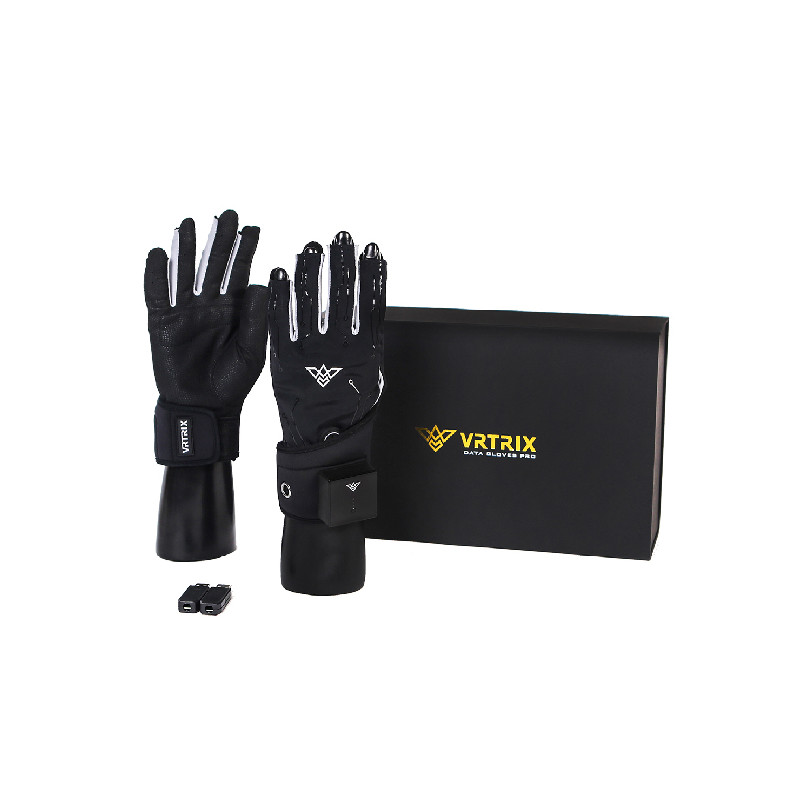

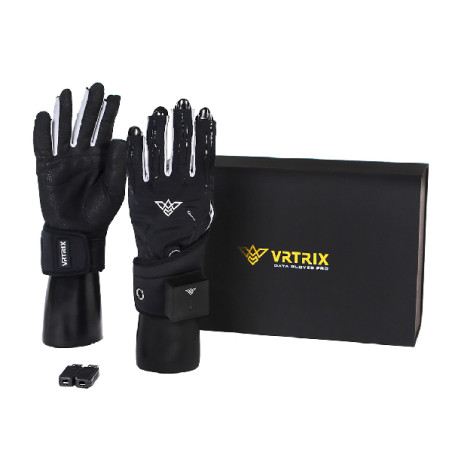

VRTRIX® Data Glove

Applications: training, entertainment, industrial simulations requiring high precision of finger movements, as well as full-body motion capture in film and animation production.

Simple & Developer-Friendly VR Data Glove
No calibration required - the glove is ready to use right out of the box, paired and calibrated at the factory
SDK available for Unity3D, UE4, MotionBuilder and C++, with open-source interactive scenarios, sample code, comprehensive documentation and demo videos.
Wrist tracking supports popular positioning solutions such as Vicon, OptiTrack, Qingtong Vision, Nokov, Ruili Vision RTS, and HTC VIVE Tracker.

High Frame Rate, Low Latency Motion Capture
Real-time acquisition of finger joint data using high-performance 9-axis MEMS inertial sensors deployed on the palm, with inverse kinematics, to reconstruct skeletal movements in virtual environments. Integrated hand vibration feedback module triggers contextual haptic effects, enhancing immersion. The glove uses 2.4 GHz wireless transmission to achieve over 120 Hz to the palm with less than 10 ms latency.

Extended Battery Life & Unnoticeable Wear
The glove is powered by a 1200 mAh lithium-ion battery that provides over 20 hours of continuous use. Made of lightweight material and compact inertial sensors, the glove provides comfort and freedom during prolonged use.

Operating System: Windows 7 and above
Supported Platforms: Compatible with Unity3D, UE4 game engines, MotionBuilder, and C++ SDK.
Gesture Recognition: The SDK supports various common gestures and also allows developers to define custom gestures.
Sensor Module: Six high-precision, zero-drift 9-axis inertial sensor modules per hand; includes a programmable vibration feedback module in the palm; supports both single-hand and dual-hand modes.
Data Update Rate: ≥120Hz (single hand); ≥240Hz (dual hands)
Data Calculation and Transmission Latency: ≤10ms
Dynamic Accuracy: Yaw: ±2°, Pitch: ±0.5°, Roll: ±0.5°
Angular Range: 360° full range for yaw, roll, and pitch
Maximum Acceleration: ±16g
Maximum Angular Velocity: ±2000°/s
Angular Resolution: 0.01°
Transmission Method: 2.4GHz RF
Wireless Transmission Baud Rate: 2Mbps
Transmission Distance: ≥10m (depending on the environment)
Battery Capacity: 1200mAh lithium battery
Battery Life: ≥30 hours
Operating Temperature: 0℃ to 45℃

Hand Motion Capture: Inertial sensors on each of the five fingers provide 3DOF. Czujnik umieszczony na grzbiecie dłoni wykrywa obrót nadgarstka.

High-Speed Wireless Transmission: a transmission latency of less than 10ms

Wrist Motion Tracking:
Compatibility with mainstream tracking solutions including Vicon, OptiTrack, Qingtong Vision, Nokov, Ruili Vision RTS, and HTC VIVE Tracker.

Motion Sensor Fusion Algorithm:
High-precision 9-axis sensor fusion algorithm with integrated geomagnetic calibration guarantees stable and accurate motion data capture.
2.4GHz Interference-Resistant Wireless Communication: The wireless signal processing and transmission module features an efficient interference-resistant auto-frequency hopping algorithm, ensuring stable performance even in complex environments.

Exceptional Battery Life
Each sensor’s peak consumption is under 8mA, and the data processing unit is optimized for low power, guaranteeing at least 20 hours of continuous operation.



Developer Support
VRTRIX™ Data Glove constantly releases and updates its developer SDK and plugins, including Unity3D and UE4 plugins, MotionBuilder plugin and C++ SDK.
If the links below do not open, please visit Baidu Netdisk mirror to get the latest software and documentation.
Baidu Netdisk Mirror (access code: 8r8w)

VRTRIX Data Glove Client Software and Documentation - Version v1.4.6 - Compatibility Windows 7 SP1 and above
VRTRIX Data Glove Unity Plugin - Version v1.4.6 - Compatibility Unity 2017.1.1 and above
VRTRIX Data Glove UE4 Plugin - Version - v2.4 - Compatibility UE4.18 and above
VRTRIX Data Glove UE5 Plugin - Version - v2.4 - Compatibility UE5.0 and above
VRTRIX Data Glove MotionBuilder Plugin - Version - v1.10 - Compatibility MB2016 and above
VRTRIX Data Glove C++ SDK - Version - v1.9 - Compatibility VS2017 and above
