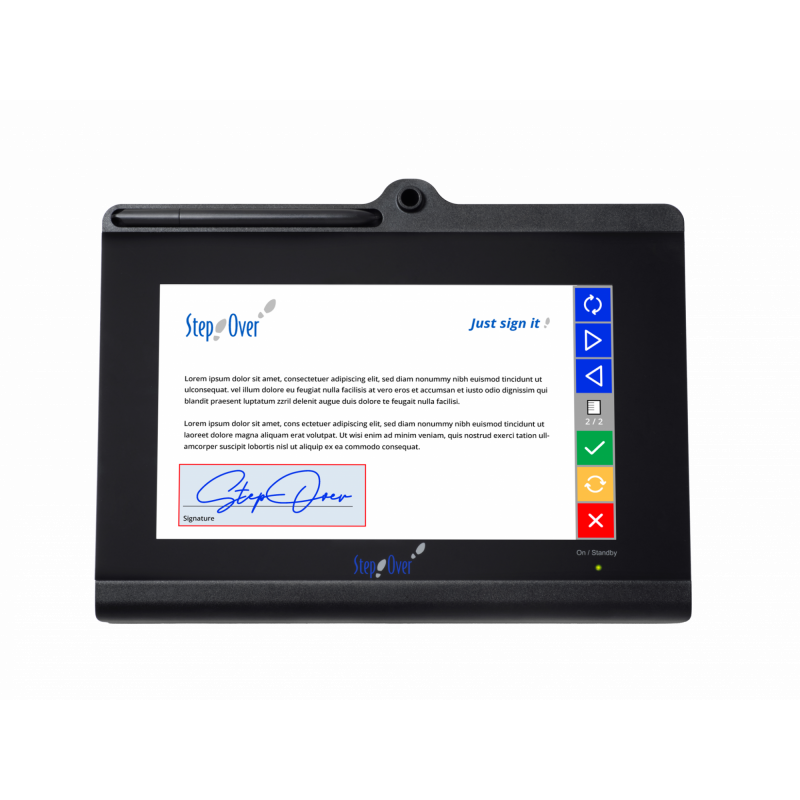

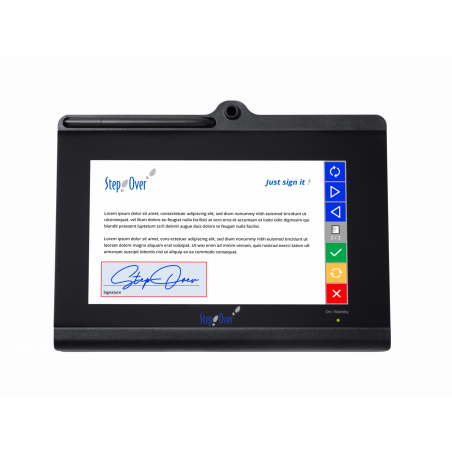

Step Over duraSign Pad 10.0

Zapytaj o cenę i dostępność na info(@)pronetkrakow.com.pl

Step Over duraSign Pad 10.0

Ten tablet posiada certyfikację FCC.

10-calowy tablet do podpisu z kolorowym ekranem, podglądem dokumentu i powierzchnią z hartowanego szkła dla maksymalnej trwałości.

Maksymalna trwałość
Elegancka i wytrzymała konstrukcja z obudową z poliwęglanu ABS o grubości 3 mm oraz dużą powierzchnią z hartowanego szkła w obszarze pisania sprawia, że tablet jest odporny na zużycie i estetyczny, idealny do stacjonarnego użytkowania.

Duży kolorowy ekran
10-calowy wyświetlacz kolorowy o wysokiej rozdzielczości pokazuje stronę A4 w oryginalnej szerokości i daje wystarczająco dużo miejsca na wstawianie długich tekstów, wiadomości i przycisków interaktywnych. Przewijanie w pionie i poziomie, zoom oraz scrollowanie są łatwe w obsłudze za pomocą rysika.

Podgląd dokumentu
Tablet pozwala wyświetlić dokument do podpisu. Podpis można złożyć bezpośrednio w odpowiednim miejscu w dokumencie, a podpis jest wyświetlany w czasie rzeczywistym na kolorowym ekranie, niemal jak na papierze.

Najwyższe bezpieczeństwo i szyfrowanie
Biometryczne dane podpisu (nacisk, prędkość, kierunek pisania) są bezpiecznie szyfrowane w tablecie i zawsze przesyłane w sposób chroniony.
Oprogramowanie StepOver wprowadza podpis do dokumentu, a połączenie jest szyfrowane asymetrycznie kluczem RSA 4096 bit.
Ważność podpisu i integralność dokumentu można zweryfikować za pomocą dostępnego oprogramowania, np. Acrobat Reader.
Aby zabezpieczyć duraSign Pad 10.0 przed kradzieżą, można go przypiąć za pomocą Kensington Lock lub zamontować przy użyciu VESA Mount 100.

Zgodność z eIDAS
Tablet StepOver nadaje się do tworzenia systemów prostej i zaawansowanej podpisu elektronicznego zgodnego z eIDAS.

Specyfikacja techniczna:

DIMENSION / HOUSING / COMPOSITION

Material Housing PC/ABS
Width Housing 29.0 cm
Depth Housing 22.0 cm
Height Housing 2.1 cm
Weight Signature pad without connector cable. 955 grams
Cover lens Chemically tempered glass over the display.

PEN

Pen type duraPen (electro-magnetic pens; battery-free). duraPen 2 / duraPen 2.5
Pen force resistance Max. force that may be applied to the pen tip. 8 Newtons
Pen attachment Textile cord affixed to the housing. Pen is easy to replace, with no tools required.

DISPLAY

Display type Colour display TFT 64k colours
Width Active area – display 22.27 cm
Depth Active area – display 12.53 cm
Display brightness Values of display brightness Max. 310 cd/m²
X- and Y- resolution of the integrated colour screen:

Display 1024 x 600 pixels
Note:
The pad screen displays the signature in real time and can be used to
display texts, documents, and virtual buttons.
The LED backlight has an expected lifespan of 20,000 operating hours. The
screen can be switched off and on again via software (recommended if the
device is also connected to a switched-on computer outside of working
hours e.g. to a computer running 24/7).

Horizontal viewing angle Left side / right side: min 60° - typically 70°
Vertical viewing angle Front / Opposite position: min 60° - typically 70°/min 45° - typically 50°

SIGNATURE CAPTURE

Sensor type Sensor type to capture signature data. ERT sensor
Sensor durability Max. number of signatures possible (with different pens, if necessary). > 30 million signatures
Sensor material Glass in the capture section with ERT sensor situated underneath. Chemically tempered glass, surface material
Width Active area ERT sensor 22.27 cm
Depth Active area ERT sensor 12.53 cm
Resolution Resolution of captured X- and Y- coordinates (without interpolation/ without adding some coordinates to other): X=2560/Y=2560 DPI/LPI
Accuracy of repetition Accuracy of repetition of X-Y measurements. +/- 0.4 mm
Temporal resolution output: Groups of 4D coordinates (Each group consists of X, Y, pressure and time): 330: output per
second
Measurement of pressure Maximum number of differentiated pressure levels: 2048 pressure levels
Minimum force Lowest measureable writing force. Approx. 0.5 Newtons
Maximum force Highest measureable writing force. Approx. 8 Newtons

SAFETY

Protection of biometric data: Patented encryption method with RSA public key safely stored in the signature pad and RSA Private Key safely stored with a notary for decryption
in case of dispute

Encryption algorithms and Signature algorithms: Name of the standard cryptographic algorithms used, which are used for encryption purposes in the pad:
Up to RSA 4096 bit, AES 256 bit, SHA 256 bit,

Kensington Slot anti- theft system
The back of the housing has a standard Kensington Security Slot. This slot is suitable for normal Kensington locks (T-Bar) and flat ClickSafe Kensington locks (e.g. model K64637WW with T-Bar) - Slot for Kensington locks
Inside, the slot is reinforced with a metal plate. Only mild/moderate force should be applied to the ClickSafe Security Anchor, otherwise the housing may crack - Slot for Kensington locks

Date stamp (optional)
The UTC/GMT date stamp must be requested when placing your order (subject to cost). It cannot be activated retrospectively, as it requires an internal battery which supplies an internal pad clock with power. The date stamp may deviate by one day per year - Optional function: subject to surcharge – Only when ordered ex-works

Tamper detection (optional)
The tamper detection function must be requested when placing your order (subject to surcharge). It cannot be activated retrospectively, as it requires an internal battery that supplies an internal memory with power. This internal memory unit holds a key that is unique to each pad, so long as it is supplied with power. If the housing is opened, the power supply is interrupted and the key is deleted. The next time it is used, the firmware integrated into the main processor detects that the key for the volatile
memory is no longer equivalent to its own, and therefore that the signature pad may have been tampered with. If the signature pad should exceed the
battery lifespan, it can be renewed by StepOver. In this regard, the device is also checked for integrity (tampering) and the alarm is reset - Optional function:subject to
surcharge – Only when ordered ex-works.

SYSTEM REQUIREMENTS

Operating System It is not necessary to install a driver.
Software compatibility for 2048 bit encryption: In order to make full use of this product, you will need a version of the following software that has, at the minimum, the same version number or higher: eSignatureOffice from version 5.9 / SimpleSigner from version 7.0 / Device API from version 5.9

Software compatibility >2048 bit encryption
Warning: To use with >2048 bit key lengths, you will require the following software versions at the minimum.
eSignatureOffice from version 6.2, SimpleSigner from version 7.1, Device API from version 6.2, Signature API from version 4.13

Signature pad - encryption >2048 bit
Warning: To use with >2048 bit key lengths, you will require the following firmware version at the minimum: From version 7.09.0.47

CONNECTIVITY / POWER SUPPLY

USB cable Y-cable / 2x USB A to Mini-USB B Length approx. 3 meters (299 cm)
Accessories included Standard accessories: USB cable, Multi-lingual operating manual: per 1 unit
Power consumption Maximum power consumption 1100 mA

Connectivity
Encrypted HID. This device does not require a HW driver; it is directly recognised by Windows/Linux like a mouse or keyboard.
Can be switched to serial transmission via USB (including for port forwarding at the Thin Client). Driver for Windows, Windows Embedded and Win CE available as optional. Also compatible with Linux and Thin-OS: USB-HID / USB 2.0 device

OTHER FEATURES

Battery
Button cell (LI-MnO2). The button cell is required for the functions "opening recognition" and "date stamp" which can be ordered as optional. Signature pads that are not equipped with these functions ex works may not contain any batteries: CR2032 type

Operating temperature
Temperatures at which the pad can function according to what is specified here: 0 to +50 °C | With a max.of 65% RH without condensation
Limited temperature range in particularly humid environments: 0 to +40°C | With a max. of 90% RH without condensation

Storage temperature
Temperatures at which the device can be transported and stored: -10 to +70 °C | With a max. of 90% RH without condensation
Recommended storage temperature for the set: -10 to +70 °C | With a max. of 90% RH without condensation

Conformity Certifications / approvals CE, UKCA, WEE, RoHS

Quality assurance measures per device
QA tests of all devices. Test protocols are linked to the serial number of the device and the coded initials of the person who carried out the tests. They can be sent to the customer via email upon request, free of chargé: Each device tested for function and measurement error

General quality assurance measures: EN ISO 9000 ff
Selection of component suppliers and standardised, documented production processes.
StepOver GmbH works exclusively with ISO-certified component suppliers, and works in line with ISO regulations.
