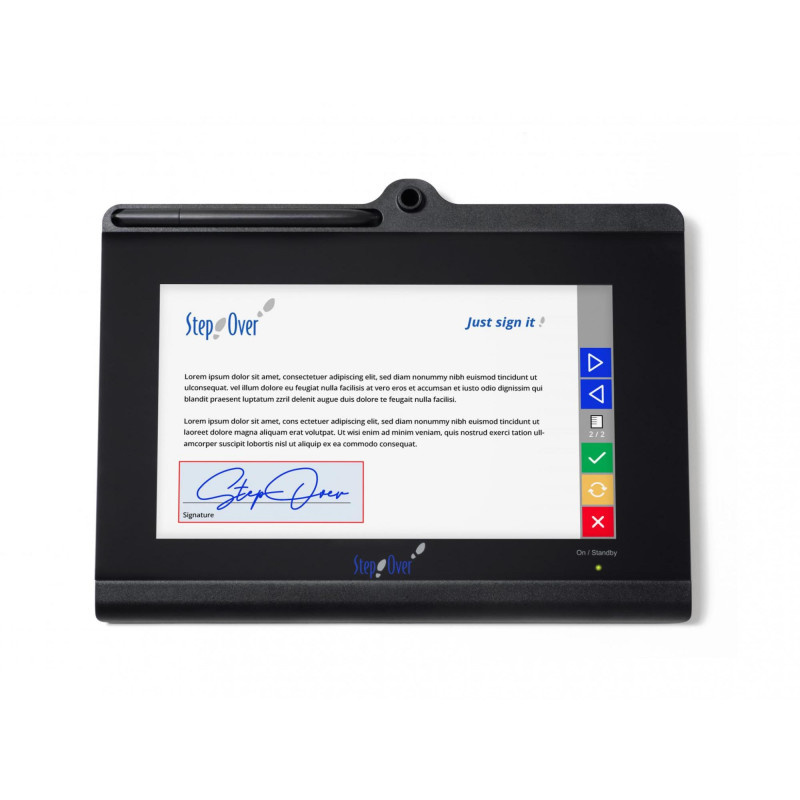

Step Over duraSign Pad NG 10

Step Over duraSign Pad NG 10

10 inch next generation (NG) signature pad

To use the signature pad via the network, you need the Ethernet Connection Kit (Europlug or International Plug).

Flexibility
The duraSign Pad NG 10 can be used both stand-alone and with StepOver software products. A PDF document can be sent to the signature pad from any end device in the network via a browser. After the signature has been executed, the finished document is available on the end device for further use.

Network capability
The signature pad communicates via its IP address. The pad offers a connection via Ethernet adapter (accessory) as well as USB. Thus, it is independent of the operating systems of the end devices and works together with Windows, MacOS or Linux, among others.

Stability and Performance
The duraSign Pad NG 10 is a complete signature unit in the network. Among other things, it is responsible for the display (rendering) of the PDF documents, the capture and encryption of the signature and the completion of the electronically signed documents. This minimizes communication between the signature pad and the end device and guarantees first-class performance, security and stability.

Easy Integration
In addition to operation via a browser, this signature pad can also be addressed via a programming interface and integrated into an existing application.

Highest Security

The signature pad is a complete signature capture device and secured on the network from unauthorized access. It has no open access and can only be accessed via its own website or the REST API interface. The device’s firmware is securely signed and protected from tampering. Updates take place using securely encrypted and signed firmware update files. The duraSign Pad NG 10 also has an opening detection feature that can detect when the case is opened.

The signature process runs completely in the signature pad:
-The biometric data of your signature (pressure, speed and writing direction) is captured by the pad and securely encrypted internally and linked to the signing document.
-The signature, including the encrypted biometric data, is inserted in full into the PDF document by the signature pad. To do this, the signature pad generates a checksum over the PDF using SHA256, which is then encrypted with a certificate (RSA 4096 bit).
-The inserted signature is ISO compliant and allows document integrity to be verified using freely available software (e.g. Acrobat Reader).
-To secure the duraSign Pad NG 10 against theft, it can be secured using a Kensington Lock (built-in Kensington slot) or alternatively mounted using a VESA Mount 100.
To secure the duraSign Pad NG 10 from theft, it can be secured using a Kensington Lock (built-in Kensington slot) or alternatively mounted using a VESA Mount 100.

eIDAS-compliant
This StepOver Signature Pad is suitable for setting up a system for advanced electronic signatures in accordance with eIDAS.

Technical Data Sheet

DIMENSION / HOUSING / COMPOSITION
Material Housing: PC/ABS
Width Housing: 29.0 cm
Depth Housing: 22.0 cm
Height Housing: 2.1 cm
Weight Signature pad without connector cable: 945 grams
Cover lens: Chemically tempered glass over the display.

PEN
Pen type: duraPen (electro-magnetic pen; battery-free): duraPen 3
Pen force resistance: Max. force that may be applied to the pen tip.: 8 Newtons
Pen attachment: Textile cord affixed to the housing. Pen is easy to replace, with no tools
required.

DISPLAY
Display type: Colour display TFT: 64k colours
Width: Active area – display 22.27 cm
Depth Active area – display 12.53 cm
Display brightness:
- Values of display brightness Max. 310 cd/m²
- X- and Y- resolution of the integrated colour screen:

Display: 1024 x 600 pixels
Note:
The pad screen displays the signature in real time and can be used to
display texts, documents, and virtual buttons.
The LED backlight has an expected lifespan of 20,000 operating hours. The
screen can be switched off and on again via software (recommended if the
device is also connected to a switched-on computer outside of working
hours e.g. to a computer running 24/7).
Horizontal viewing: angle Left side / right side min 60° - typically 70°
Vertical viewing angle:
Front: min 60° - typically 70°
Opposite position: min 45° - typically 50°

SUPPORTED FILE FORMATS

Document file format: PDF/A 1b, PDF/A 2b, PDF/A 3b, other PDF- Formats depending on tests:
PDF/A 1b, 2b, 3b, others PDF formats, if tested
Slide show and picture file format PNG, JPG, BMP: 1024 x 600 pixels
Video file format: Codec: VP8, Resolution: 512x300 will be scaled to display size, Bitrate 512K, Refresh rate 24 Hz.
512 x 300 pixels / 512K Bitrate / 24Hz VP8

SIGNATURE CAPTURE

Sensor: type Sensor type to capture signature data. ERT sensor
Sensor durability: Max. number of signatures possible (with different pens, if necessary). > 30 million signatures
Sensor material: Glass in the capture section with ERT sensor situated underneath. Chemically tempered glass surface material
Width Active area ERT sensor 22.27 cm
Depth Active area ERT sensor 12.53 cm
Resolution Resolution of captured X- and Y- coordinates (without interpolation/ without adding some coordinates to other): X=2560 / Y=2560 / DPI/LPI
Accuracy of repetition: Accuracy of repetition of X-Y measurements. +/- 0.4 mm
Temporal resolution output: Groups of 4D coordinates (Each group consists of X, Y, pressure and time): 330 output per second
Measurement of pressure Maximum number of differentiated pressure levels: 2048 pressure levels
Minimum force Lowest measureable writing force. Approx. 0.5 Newtons
Maximum force Highest measureable writing force. Approx. 8 Newtons

SAFETY

Protection of biometric data: Patented encryption method with RSA public key safely stored in the signature pad and RSA Private Key safely stored with a notary for decryption in case of dispute.
Encryption algorithms and Signature algorithms: Name of the standard cryptographic algorithms used, which are used for encryption purposes in the pad:
Up to RSA 4096 bit / AES 256 bit / SHA 256 bit

Kensington Slot anti- theft system:Slot for Kensington locks
The back of the housing has a standard Kensington Security Slot. This slot is suitable for normal Kensington locks (T-Bar) and flat ClickSafe Kensington locks (e.g. model K64637WW with T-Bar).
Inside, the slot is reinforced with a metal plate. Only mild/moderate force should be applied to the ClickSafe Security Anchor, otherwise the housing may crack

Date stamp (optional): Standard function
The date and time stamp, that is attached to each signature requires and internal battery which supplies an internal pad clock with power. The date stamp may deviate by one day per year, if not update via a NTP time server.

Tamper detection (optional): Optional function - subject to surcharge – Only when ordered ex-works.
The tamper detection function must be requested when placing your order (subject to surcharge). It cannot be activated retrospectively, as it requires
an internal battery that supplies an internal memory with power. This internal memory unit holds a key that is unique to each pad, so long as it is supplied with power. If the housing is opened, the power supply is interrupted and the key is deleted. The next time it is used, the firmware integrated into the main processor detects that the key for the volatile memory is no longer equivalent to its own, and therefore that the signature pad may have been tampered with. If the signature pad should exceed the battery lifespan, it can be renewed by StepOver. In this regard, the device is also checked for integrity (tampering) and the alarm is reset.

SYSTEM REQUIREMENTS

Operating System:
It is not necessary to install a driver. The device is detected an external network device by Windows, Mac OS and most Linux distributions.
Windows 10 and above, Mac OS Catalina and above, Linux Distribution with USB 2.0 support (or higher) and Ethernet over USB driver (CDC)

Use with a web browser: Chrome, Edge, Safari, Firefox
In order to make full use of this product, you will need a version of the following browser.

Software compatibility: eSignatureOffice 7.X or higher SimpleSigner 8.X or higher
In case you do not want to use the signature device with your web browser, you can use it together with the following software.

Developer Interface: Internal REST API Next Gen API (.NET) swagger Interface
Signature Pad has a REST API Interface which can be used to implement the signature pad with customer applications

CONNECTIVITY / POWER SUPPLY

USB cable Y-cable / 2x USB A to Mini-USB B: Length approx. 3 meters (299 cm)
Accessories included: Standard accessories: USB cable, Multi-lingual, operating manual per 1 unit
Power consumption: Maximum power consumption: 5 watt (1000 mA)
Connectivity This device does not require a HW driver; it is directly recognised by Windows/Mac OS and most Linux Distributions. (RNDIS device): USB Network Device
(Ethernet over USB): USB 2.0 device

Accessories (additional/ not included): Ethernet Connection Kit (Europlugs) for duraSign Pad NG 10:
USB 2.0 Network / Adapter, 10/100Mbit with Slimline USB power supply 7 Watt: per 1 unit

Accessories (additional/not included): Ethernet Connection Kit (International Plugs) for duraSign Pad NG 10:
USB 2.0 Network Adapter, 10/100Mbit with USB power supply 7,5 Watt

OTHER FEATURES

Battery: Button cell (LI-MnO2). The button cell is required for the internal real time clock and the optional "opening recognition" function: CR2032 type

Operating temperaturę:
Temperatures at which the pad can function according to what is specified here 0 to +50, °C | With a max. of 65% RH without condensation
Limited temperature range in particularly humid environments 0 to +40: °C | With a max. of 90% RH without condensation

Storage temperaturę:
Temperatures at which the device can be transported and stored  -10 to +70 °C | With a max. of 90% RH without condensation
Recommended storage temperature for the set -10 to +70 °C | With a max. of 90% RH without condensation

Conformity Certifications / approvals CE, UKCA, WEE, RoHS

Quality assurance measures per device: QA tests of all devices. Test protocols are linked to the serial number of the device and the coded initials of the person who carried out the tests. They can be sent to the customer via email upon request, free of chargé.
Each device tested for function and measurement error

General quality assurance measures: Selection of component suppliers and standardised, documented production processes. StepOver GmbH works exclusively with ISO-certified component suppliers, and works in line with ISO regulations: EN ISO 9000 ff
