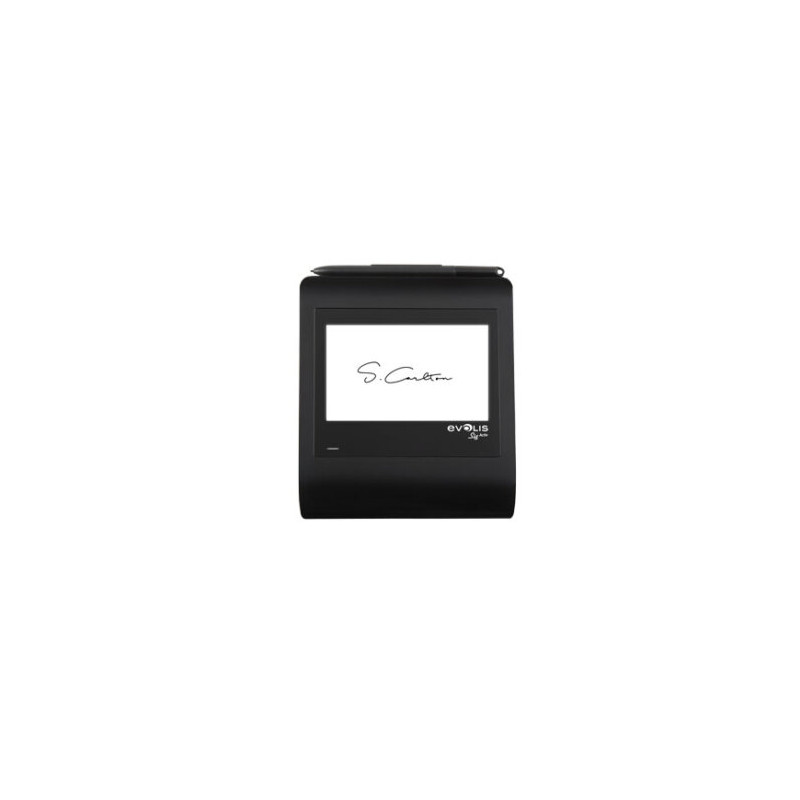

Evolis Sig Activ

Evolis Signature pads
- Sig Activ
- SIG200
- SIG100
- SIG100 LITE

SUPPORTED OS:

Windows® XP 32/64,
Windows® 7 32/64,
Windows® 8 32/64,
Windows® 10 32/64,
Windows® Server 2003, 2008, 2010,
Linux

CERTIFICATIONS AND STATEMENT OF COMPLIANCE:

TUV,
CE, FCC,
RoHS,
EN 60950-1, EN 61000-6-1, EN 61000-6-3
PROTECTION CLASS: IP52



GENERAL FEATURES • Slim and ergonomic design
• Active and battery-free pen with changeable pen tips
• Tether
• 2 LED status indicators

DISPLAY
• 5’’ (12.7 cm)
• Full color TFT
• Real time signature display
• Backlit display
• 16 milions colors
• 800 x 480 pixels

SENSOR • Electromagnetic Resonance Technology (ERT)
• Only responsive to the pen
• Active signing area: 108 x 64 mm (4.25’’ x 2.52’’)
• Resolution: 10206 x 7422 pixels / 2400 x 2909 ppi
• Linearity: +/- 0.4 mm
• 1024 pressure levels
• Hardened special glass

SIGNATURE DIGITIZATION
• External sampling rate: 500 Hz (samples per second), 4 axes (x, y, time and pressure)
• Internal sampling rate: 6000 Hz (samples per second)

SECURITY
• AES encryption of data transfer between the pad and the computer
• RSA signature and encryption in the pad
• Unique internal serial number

SIZE AND WEIGHT
• 12 x 145 x 177
• 220 g

INTERFACE: Windows® USB High-speed (460 Mbits/s) and HID-USB 2.0 High Speed (12 Mbits/s).

POWER: Via USB cable, no external power supply

SOFTWARE
• Optional signoSign/2 software for creating and signing secure PDF documents
• Free SDK available upon request:
- Screen configuration and customization
- Definition of signature area
- Signature capture in various formats
- RSA-signing functionality in the pad
- Documentation available on demand
Free tools and a Twain driver are available on the manufacturer's website
