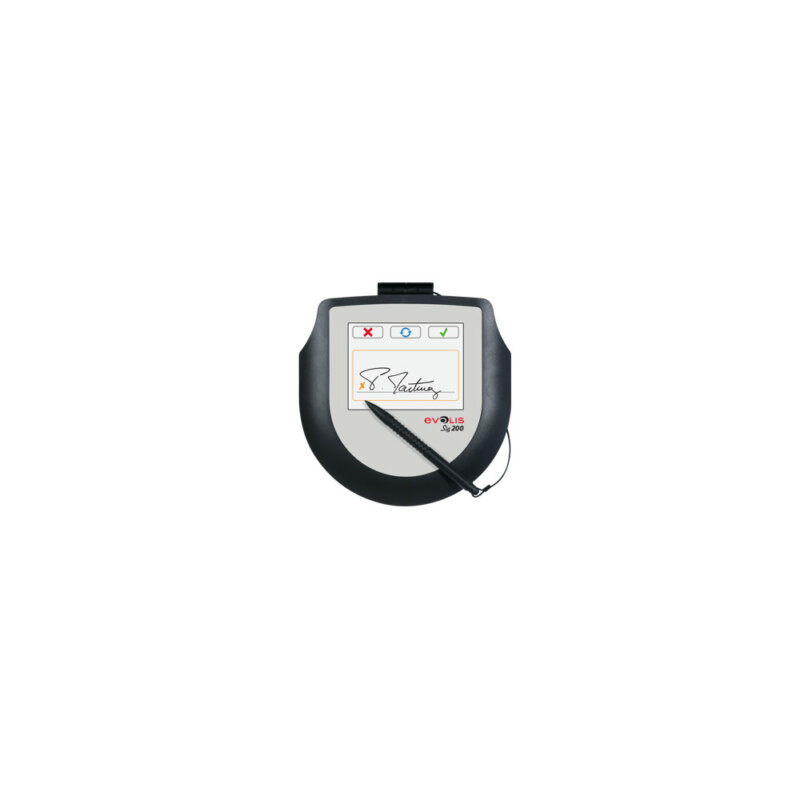

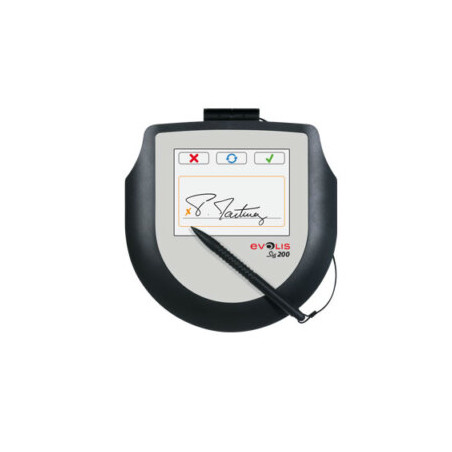

Evolis Sig200

Evolis Sig200 Signature pads

SUPPORTED OS:

Windows® XP 32/64,
Windows® 7 32/64,
Windows® 8 32/64,
Windows® 10 32/64,
Windows® Server 2003, 2008, 2010,
Linux

CERTIFICATIONS AND STATEMENT OF COMPLIANCE:

TUV,
CE, FCC,
RoHS,
EN 60950-1, EN 61000-6-1, EN 61000-6-3

PROTECTION CLASS: IP52



GENERAL FEATURES
Slim and ergonomic design
Standard stylus
Tether
2 LED status indicators
DISPLAY
5’’ (12.5 cm)
Full-color TFT
Real-time signature display
Backlit display
65 000 colors
640 x 480 pixels
SENSOR • Resistive touch technology
Active signing area: 101 x 76 mm
Resolution 4096 x 4096 pixels / 1388 x 1040 ppi
Linearity: +/- 1.5% in x, y and z directions
1024 pressure levels
DIGITIZATION
External sampling rate: 500 Hz (samples per second), 4 axes (x, y, time and pressure)
Internal sampling rate: 6000 Hz (samples per second)
SECURITY
AES encryption of data transfer between the pad and the computer
RSA signature and encryption in the pad
Unique internal serial number
SIZE AND WEIGHT
15 x 180 x 191 mm
356 g
INTERFACE: Full-speed (12 Mbps) USB 2.0 HID (Human Interface Device) compatible with earlier versions
POWER: Via USB cable, no external power supply
SOFTWARE
Compatible with signoSign/2 software for creating and signing secure PDF documents
Free SDK available upon request:
- Definition of signature area
- Signature capture in various formats
- RSA-signing functionality in the pad
- Documentation available on demand
