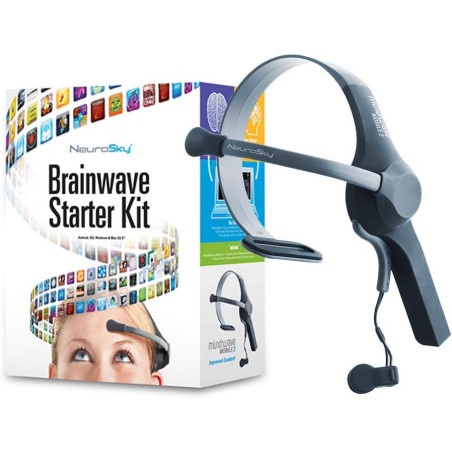

NeuroSky MindWave Mobile 2: Brainwave Starter Kit

MindWave Mobile 2

The EEG brainwave reading kit turns science fiction into reality in the comfort of your home. MindWave Mobile 2 EEG is the culmination of research in EEG biosensor technology, all in one easy-to-control device.
MindWave Mobile and offers several design improvements. Flexible rubber sensor arms, a rounded forehead sensor tip, a T-shaped headband, and wider ear clip contacts make MindWave Mobile 2 the most comfortable EEG ever.
(MindWave Mobile 2 works with all MindWave Mobile apps - Some older apps may no longer be supported.)

App Store
Over 100 applications for MindWave and MindWave Mobile 2 EEG headsets. The NeuroSky App Store includes applications from third-party developers, as well as tools from NeuroSky. Download brainwave-powered games, wellness, education and neuroscience apps.


Zastosowanie / Application:
- Effective Learner & Study Trainer
- A new way to have fun
- Concentration and relaxation
- Wellness


Technical Specs

The MindWave Mobile 2 safely measures and outputs the EEG power spectrums (alpha waves, beta waves, etc), NeuroSky eSense meters (attention and meditation) and eye blinks. The device consists of a headset, an ear-clip, and a sensor arm. The headset's reference and ground electrodes are on the ear clip and the EEG electrode is on the sensor arm, resting on the forehead above the eye (FP1 position). It uses a single AAA battery with 8 hours of battery life.
MindWave Mobile 2

- Uses the TGAM1 module
- Automatic wireless pairing
- Single AAA Battery (Not included)
- 8-hours battery run time
- BT/BLE dual mode module (10 meters range). Bluetooth dongle not included.
- Static Headset ID (headsets have a unique ID for pairing purposes)
- Supported platforms: Windows (XP/7/8/10), Mac (OSX 10.8 or later), iOS (iOS 8 or later) and Android (Android 2.3 or later)

Measurements

- Outputs 12 bit Raw-Brainwaves (3 - 100Hz) with Sampling rate at 512Hz
- Outputs EEG power spectrums (Alpha, Beta, etc.)
- Outputs NeuroSky proprietary eSense meter such as Attention, Meditation, and other future meters
- EEG/ECG signal quality analysis (can be used to detect poor contact and whether the device is off the head)

Physical
- Weight: 90g
- Sensor arm up: height: 225mm x width: 155mm x depth: 92mm
- Sensor Arm down: height: 225mm x width: 155mm x depth: 165mm

Bluetooth

BT/BLE dual mode module
-BT(SPP) for PC, Mac, Android
-BLE(GATT) for iOS
BT Range: 10m range

Separate additional iOS and Android Apps are available through their respective Mobile App Store.

MindWave Mobile 2: Brainwave Starter Kit

Brainwave Starter Kit
Download more games from the NeuroSky App Store.

in box:
MindWave Mobile 2 EEG headset
Quick start guide

Download Link to MindWave Mobile 2 Tutorial
Download Link to Other Free Apps
