ViewPointSystem VPS Lite

ViewPointSystem

It breaks down the barriers between man and machine, between the real and digital worlds. It enables interaction that is intuitive, practical and simply enjoyable.

Viewpointsystem combines pioneering technology with scientific know-how in the field of vision research.

They develop and produce award-winning smart glasses based on eye movement tracking worldwide. They make it easier for customers around the world to collaborate remotely, for example through remote support. In the field of research and analysis, they provide precise data to better understand human behavior.

The company originates from a spin-off of the Vienna University of Natural Resources and Applied Life Sciences. Viewpointsystem has been conducting scientific research on eye movement tracking for more than two decades, mainly in the areas of road accident prevention and mobility.

Smart glasses in two systems: VPS Lite and VPS 19

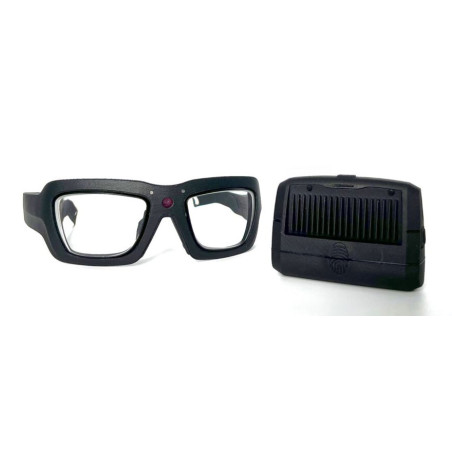

- ViewPointSystem VPS Lite
Ultra-light, small, ergonomic design for high-quality training and documentation videos including eye tracking.

Can be worn flexibly on a helmet, shoulder or belt
Maximum freedom of movement and hands-free operation
Continuous automatic calibration based on artificial intelligence
Stable performance in almost all lighting conditions
Ready for immediate use
Live view and wireless video analysis on smartphone or tablet
3-hour battery life (replaceable battery)
Robust and optimized for outdoor use, dust-proof, splash-proof and sweat-proof

VPS LITE
Operating system Processor
- Linux 5.15
- NXP i.MX 8M Plus Quad,
- 4 x Cortex A53, 1 x Cortex M7, 1 x NPU up to 2.3 TOPS
- 4GB RAM/8GB Flash Memory for Operating System
Storage medium Video format: SD Memory Card, 64GB, exchangeable mp4
Interface Wireless connection Software Updates:
- 2x USB-C 3.0 (1x to glasses, 1x free e.g. for USB-stick)
- Wi-Fi IEEE 802.11 a/b/g/n/ac, Bluetooth 5.0
- via OTA (over the air)
IMU / Location determination
- 6 DOF: Accelerometer, Gyroscope
- GPS
Operating elements / Status indication / Date, Time / Web Interface
- 2 buttons: for recording and on/off
- 3x RGB LED, buzzer
- Real time clock with back-up battery
- System configuration, live preview, playback and download of recorded videos
Swap battery / Capacity / Operation time
- Rechargable Li-ion Battery, Typ 18650
- 3400 mAh
- up to 3 hours (depending on application)
Dimensions L x W x H / Weight / Protection class
- 84 x 58 x 33 mm
- Weight from 95 g
- IP 54

VPS SMART GLASSES

Eye-tracking: Patented 2 camera video oculography system with light robustness 60 fps (frames per seconds)
Front camera:
- 2112 x 1562 pixel/ 86° field of view
- 30 fps (frames per second)
Status indication: 3x RGB LED
Cable connection: USB 3.0 Type C
Microphone: Digital High-SNR SiSonicTM Microphone
L x W x H: 168 x 170 x 57 mm (6.61 x 6.69 x 2.24 in)
Spectacle frame (excluding spectacle lenses): 43 g (1.52 oz)

ACCESSORIES
CORRECTIVE LENSES: Exchangeable optical lenses, optional from -4 to +4 diopters
NOSE PADS: 4 sizes supplied
TEMPLES: Exchangeable
ASSEMBLY: Belt clip, head mount, helmet mount, velcro mount
