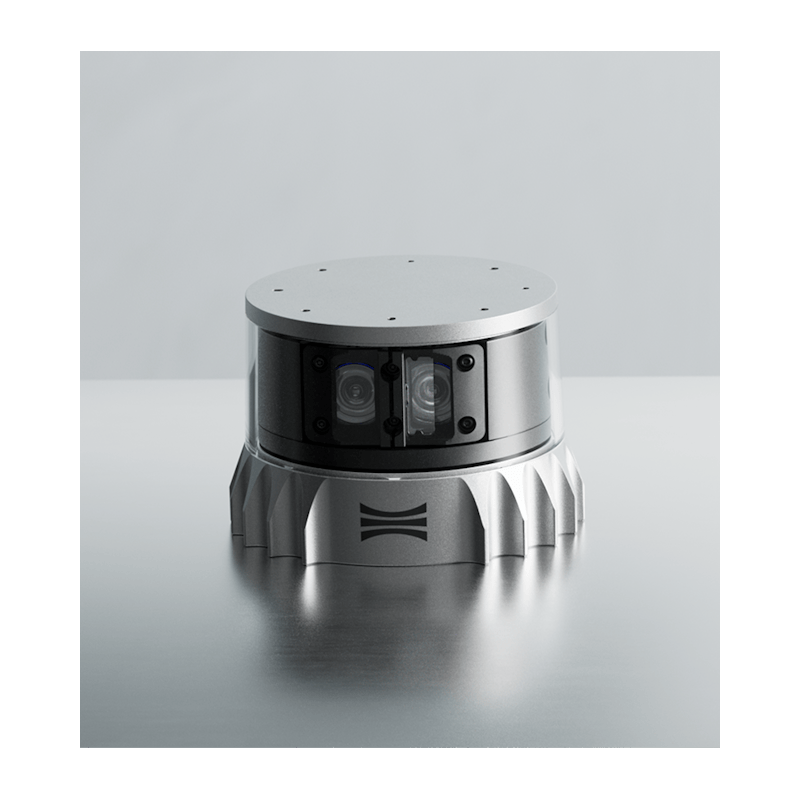

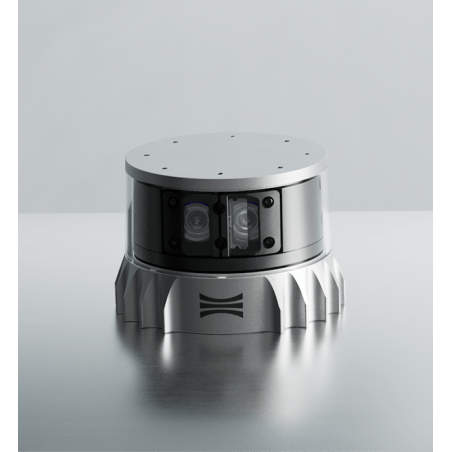

Ouster Rev8 – 3D LiDAR Family with Native RGB-D Color

Short Product Description

Ouster Rev8 is a new generation of digital 3D LiDAR sensors designed for advanced spatial perception in robotics, industrial automation, autonomous vehicles, smart city infrastructure, security systems, 3D mapping, and AI / Physical AI applications. The Rev8 family includes the OSDome, OS0, OS1, and OS1 Max models, which differ in range, field of view, and number of channels.

Rev8 sensors deliver a native RGB-D point cloud, combining 3D depth data with color without the need for an external camera. Thanks to high resolution, a large number of points per second, a wide operating range, and a rugged design, the Rev8 series is suitable for both mobile and stationary applications.

Technical Information

The Ouster Rev8 series has been designed as a family of high-performance 3D LiDAR sensors with native color. Depending on the selected variant, users can choose a sensor for short-range applications, wide field-of-view use cases, hemispherical applications, or long-range operation.

Each Rev8 sensor generates 3D data in the form of a point cloud with information such as RGB, range, signal, reflectivity, near-infrared, channel, azimuth angle, and timestamp. The devices communicate via UDP over Gigabit Ethernet / 1000BASE-T, support time synchronization, feature a built-in IMU, and include diagnostic functions such as sensor window blockage detection.

The Rev8 series is designed to operate in harsh environmental conditions. The sensors offer an operating temperature range from -40°C to +85°C, shock resistance up to 100 g, vibration resistance of 10 G-rms, and an IP68 / IP69K ingress protection rating when the I/O cable is connected. The manufacturer also declares design considerations for functional safety and cybersecurity, including references to ASIL-B, SIL-2, PLd, and ISO 21434.

Key Features

Native RGB-D point cloud
Integration of color and 3D data without an external camera
Up to 10,485,760 points per second
360° horizontal field of view
Horizontal resolution up to 4096 points
Configurable rotation rate: 5, 10, 15, 20, 30, or 40 Hz
Up to 2 signal returns
Data: RGB, range, signal, reflectivity, near-infrared, channel, azimuth angle, timestamp
Built-in IMU
UDP over Gigabit Ethernet / 1000BASE-T interface
Time synchronization: PTP, gPTP, NMEA, PPS, internal clock
Sensor window blockage detection
On-sensor 3D Zone Monitor
Laser safety class: Class 1 eye-safe
Operating range: -40°C to +85°C
Ingress protection rating: IP68 / IP69K
Shock resistance: 100 g
Vibration resistance: 10 G-rms
Software compatibility: Ouster SDK, Ouster Studio, ROS2, ROS, NVIDIA DriveWorks, NVIDIA IsaacSim, MATLAB

Applications

Mobile and autonomous robotics
AMR / AGV
Warehouse automation
3D security and monitoring systems
Smart infrastructure / smart city
Autonomous vehicles
Heavy-duty and off-highway machines
Drones and mobile platforms
3D mapping
ITS systems and traffic analysis
Spatial perception for AI applications

Available Rev8 Variants

Ouster OSDome Rev8
Hemispherical 3D LiDAR with a 180° field of view
Applications: space monitoring, people detection, smart infrastructure, mobile robots

Ouster OS0 Rev8
Short-range 3D LiDAR with a wide 90° vertical field of view
Applications: robotics, AMR / AGV, warehouses, industrial environments, drones, mapping

Ouster OS1 Rev8
Mid-range 3D LiDAR combining resolution and range
Applications: industrial automation, autonomous vehicles, smart infrastructure, mapping

Ouster OS1 Max Rev8
Long-range 3D LiDAR with up to 256-channel resolution
Applications: long-range autonomy, vehicles, heavy-duty machines, traffic monitoring, 3D mapping
