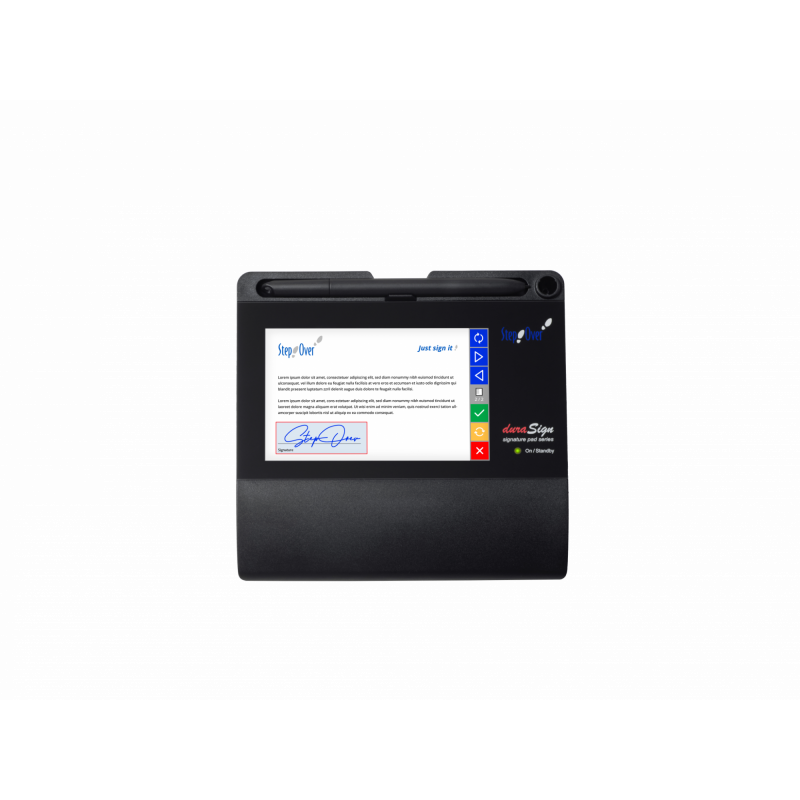

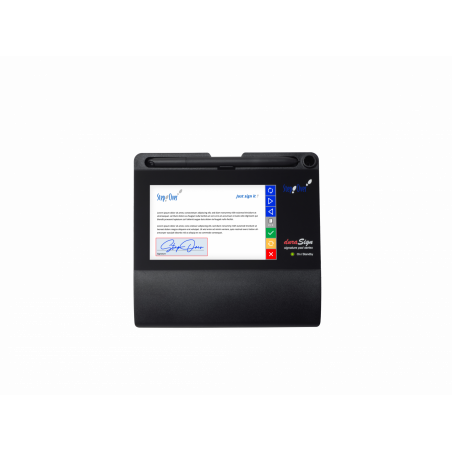

Step Over duraSign Pad Brilliance

Step Over duraSign Pad Brilliance

Maximum durability
The elegant and robust design with 3mm thick polycarbonate ABS housing and large tempered glass surface in the writing area, makes this signature pad a both wear-resistant and good-looking solution for stationary use.

High resolution color screen
The high-resolution color screen gives you enough space to display long texts, messages and interactive buttons. In standby mode, you can present your latest offers, products and solutions using a slideshow.

Document view
This signature pad allows you to display the document to be signed. You can sign directly in the document at the appropriate place. The signature is displayed in real time on the color screen of the signature pad, almost like on paper.

Highest security
The biometric data of your signature (pressure, speed and writing direction) is already securely encrypted in the pad and is always securely transmitted.
The StepOver software solutions bring this signature into the document. The connection is asymmetrically encrypted with an RSA 4096 key.
The validity of the signature and the document integrity can be checked with freely available software (e.g. Acrobat Reader).
To prevent theft, the duraSign Pad Brilliance can be secured using Kensington Lock.

eIDAS compliant
This StepOver Signature Pad is suitable for setting up a system for simple and advanced electronic signatures in accordance with eIDAS.

DIMENSION / HOUSING / COMPOSITION

Material Housing PC/ABS
Width Housing 20.0 cm
Depth Housing 17.3 cm
Height Housing 1.7 cm
Weight Signature pad without USB cable. 385 grams
Cover lens Chemically tempered glass over the display.

PEN

Pen type duraPen (electro-magnetic pen; battery-free). duraPen 1
Pen force resistance Max. force that may be applied to the pen tip. 8 Newtons
Pen attachment Textile cord affixed to the housing. Pen is easy to replace, with no tools required.

DISPLAY

Display type Colour display TFT 64k colours
Width Active area – display 10.8 cm
Depth Active area – display 6.5 cm
Display brightness Values of display brightness Max. 245 cd/m²
Display:800 x 480 pixels
Note: The pad screen displays the signature in real time and can be used to display texts, documents, and virtual buttons. The LED backlight has an expected lifespan of 20,000 operating hours. The screen can be switched off and on again via software (recommended if the device is also connected to a switched-on computer outside of working hours e.g. to a computer running 24/7).
Horizontal viewing angle Left side / right side min 60° - typically 70°
Vertical viewing angle Front / Opposite position min 60° - typically 70°/min 45° - typically 50°

SIGNATURE CAPTURE

Sensor type Sensor type to capture signature data. ERT sensor
Sensor durability Max. number of signatures possible (with different pens, if necessary). > 30 million signatures
Sensor material Glass in the capture section with ERT sensor situated underneath. Chemically tempered glass surface material
Width Active area ERT sensor 10.8 cm
Depth Active area ERT sensor 6.5 cm
Resolution Resolution of captured X- and Y- coordinates
(without interpolation/ without adding some coordinates to other).
X=2400
Y=2900 DPI/LPI
Accuracy of repetition Accuracy of repetition of X-Y measurements. +/- 0.5 mm
Temporal resolution output: Groups of 4D coordinates (Each group consists of X, Y, pressure and time). 274 output per second
Measurement of pressure: Maximum number of differentiated pressure levels. 1024 pressure levels
Minimum force Lowest measureable writing force. Approx. 0.5 Newtons
Maximum force Highest measureable writing force. Approx. 8 Newtons

SAFETY

Protection of biometric data: Patented encryption method with RSA public key safely stored in the signature pad and RSA Private Key safely stored with a notary for decryption
in case of dispute.
Encryption algorithms and Signature algorithms: Name of the standard cryptographic algorithms used, which are used for encryption purposes in the pad.
Up to RSA 4096 bit, AES 256 bit, SHA 256 bit,

Kensington Slot anti- theft system
The back of the housing has a standard Kensington Security Slot. This slot is suitable for normal Kensington locks (T-Bar) and flat ClickSafe Kensington locks (e.g. model K64637WW with T-Bar). Inside, the slot is reinforced with a metal plate. Only mild/moderate force should be applied to the ClickSafe Security Anchor, otherwise the housing may
crack. - Slot for Kensington locks

Date stamp (optional): Optional function: The UTC/GMT date stamp must be requested when placing your order (subject to cost). It cannot be activated retrospectively, as it requires an internal battery which supplies an internal pad clock with power. The date stamp may deviate by one day per year - subject to surcharge – Only when ordered ex-works.

Tamper detection (optional): The tamper detection function must be requested when placing your order (subject to surcharge). It cannot be activated retrospectively, as it requires an internal battery that supplies an internal memory with power. This internal memory unit holds a key that is unique to each pad, so long as it is supplied with power. If the housing is opened, the power supply is interrupted and the key is deleted. The next time it is used, the firmware integrated into the main processor detects that the key for the volatile memory is no longer equivalent to its own, and therefore that the signature pad may have been tampered with. If the signature pad should exceed the battery lifespan, it can be renewed by StepOver. In this regard, the device is also checked for integrity (tampering) and the alarm is reset - subject to surcharge – Only when ordered
ex-works.

SYSTEM REQUIREMENTS

Operating System It is not necessary to install a driver.

Software compatibility for 2048 bit encryption: In order to make full use of this product, you will need a version of the following software that has, at the minimum, the same version number or higher. eSignatureOffice from version 5.9 SimpleSigner from version 7.0 Device API from version 5.9

Software compatibility >2048 bit encryption: Warning: To use with >2048 bit key lengths, you will require the following software versions at the minimum. eSignatureOffice from version 6.2 SimpleSigner from version 7.1, Device API from version 6.2, Signature API from version 4.13

Signature pad - encryption >2048 bit: Warning: To use with >2048 bit key lengths, you will require the following firmware version at the minimum. From version 7.09.0.49

CONNECTIVITY / POWER SUPPLY

USB cable USB A to Mini-USB B Length, 2 metres
Accessories included Standard accessories: USB cable, Multi-lingual, operating manual - per 1 unit
Power consumption Maximum power consumption 500 mA
Connectivity: Encrypted HID. This device does not require a HW driver; it is directly recognised by Windows/Linux like a mouse or keyboard. Can be switched to serial transmission via USB (including for port forwarding at the Thin Client). Driver for Windows, Windows Embedded and Win CE available as optional. Also compatible with Linux and Thin-OS - USB-HID, USB 2.0 device

OTHER FEATURES

Battery: Button cell (LI-MnO2). The button cell is required for the functions "opening recognition" and "date stamp" which can be ordered as optional. Signature pads that are not equipped with these functions ex works may not contain any batteries -CR2032 type

Operating temperaturę: Temperatures at which the pad can function according to what is specified here - 0 to +50 - °C | With a max. of 90% RH without condensation

Storage temperaturę:
Temperatures at which the device can be transported and stored: -10 to +70 °C | With a max. of 90% RH without Condensation °C | With a max.
Storage temperature for the electronic pen (duraPen 1): -20 to +70°C | With a max. of 65% RH without condensation °C | With a max.
Recommended storage temperature for the set: -20 to +65of 95% RH without condensation °C | With a max. / -10 to +65 of 90% RH without condensation

Conformity Certifications / approvals CE, UKCA, WEE, RoHS
