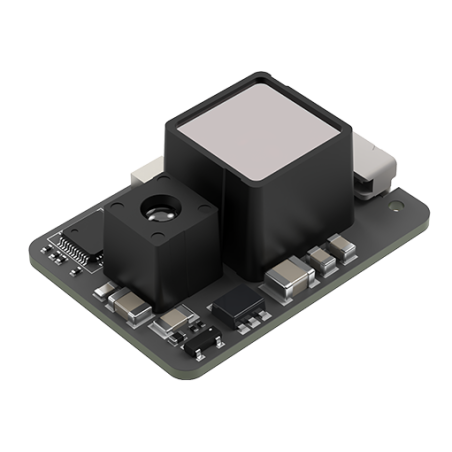

Benewake TFS20-L
The TFS20-L is a fully integrated single-channel dToF ranging mini-module that incorporates a highly sensitive infrared-enhanced SPAD sensor, with a range of up to 20m.
Benewake TFS20-L
The TFS20-L is a fully integrated single-channel dToF ranging mini-module that incorporates a highly sensitive infrared-enhanced SPAD sensor, with a range of up to 20m.
Performance Parameter
Detection range:
0.2-20m@90% reflectivity@0Klux,
0.2-15m@90% reflectivity@100Klux
0.2-12m@10% reflectivity@0Klux,
0.2-9m@10% reflectivity@100Klux
Accuracy: 1 ±6cm(0.2~6m), 1%(≥6m)
Precision: 2 2cm(0.2~6m)@1
Default frame rate: 0 / 20 / 50 / 100 (Default) / 250Hz
Ambient light resistance: 100Klux
Laser Parameters
Light source: VCSEL
Central wavelength: 905nm
FoV: <2°
Eye safety: Class 1 Eye-safe [EN60825]
Mechanical/Electrical
Average power consumption: ≤0.35W
Peak current: 115mA@3.3V
Power supply: DC 3.3±9%V
Communication Level: LVTTL (3.3V)
Operating temperature: -20 ~ +60
Storage temperature: -40 ~ +85
Dimensions: 21*15*7.87mm3
Weight: ~1.35g
Connector: 0.8mm-6P (Model: WF08006-01207)
Protection Level: N A
