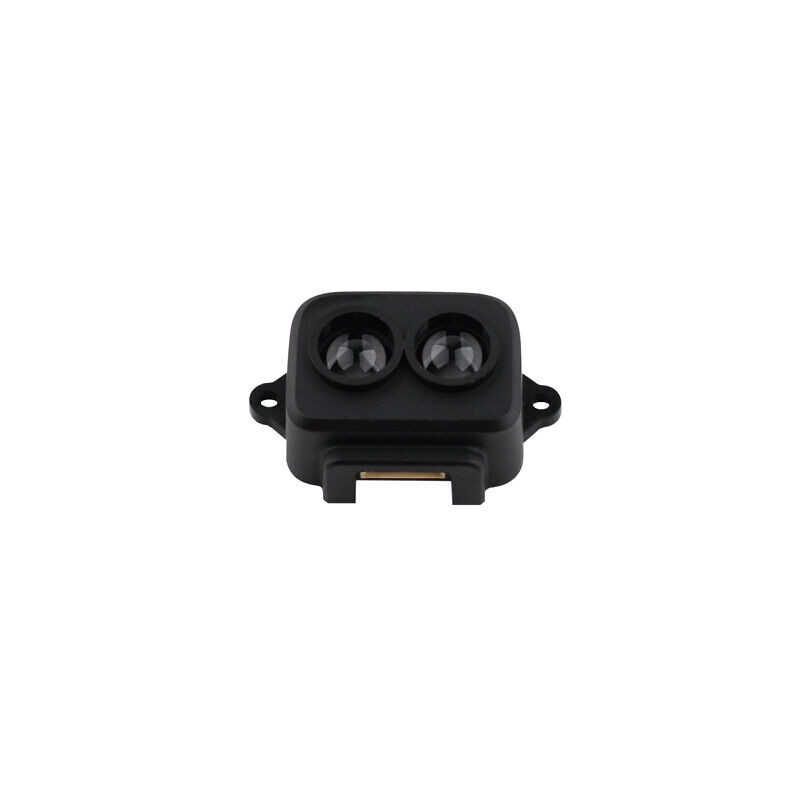

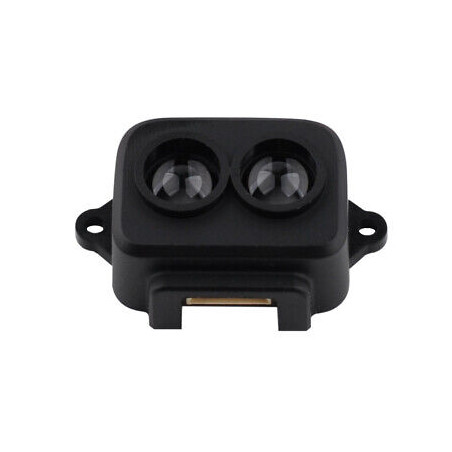

Benewake TF-Luna
TF Luna LiDAR has built-in adaptive algorithms that allow it to modify itself based on its environment and objectives. It also provides users with the ability to customize mode parameters according to their specific needs.
Benewake TF-Luna
TF Luna LiDAR has built-in adaptive algorithms that allow it to modify itself based on its environment and objectives. It also provides users with the ability to customize mode parameters according to their specific needs.
Performance Parameter
Operating range: 0.2~8m(90% reflectivity)
Accuracy:
±6cm@(0.2-3m)
±2%@(3m-8m)
Distance resolution: 1cm
Frame rate: 1-250Hz3
Ambient light immunity: 70Klux
Operating temperature: -10°C~60°C
Enclose rating: /
Optical parameters
Light source: VCSEL
Central wavelength: 850nm
FoV: 2°
Photobiological safety: Class1 (IEC60825)
Electrical parameters
Supply voltege: 3.7V-5.2V
Average current: ≤70mA
Peak current: 150mA
Power consumption: ≤0,35W
Communication Level: LVTTL(3.3V)
Communication interface: UART/I2C
Operating temperature: -10
Storage temperature: -20°C~75°C
Housing: ABS+PC
Dimensions: 35mmx21.25mmx12.5mm (LxWxH)
Weight: <5g
