Vuzix M400 Smart Glasses

Vuzix M400 Smart Glasses

The Vuzix M400 is an industrial, monocular smartglass designed for hands-free operation. The device operates as a standalone Android computer, equipped with its own processor, memory, camera, microphones, speaker, Wi-Fi and Bluetooth connectivity, and GPS receiver. It does not require a constant connection to a smartphone or computer.

The glasses can display work instructions, documentation, diagrams, checklists, and data from enterprise systems, as well as record video, scan barcodes, and transmit the user's view to a remote expert. Typical applications include field service, maintenance, manufacturing, quality control, warehousing, training, telemedicine, and remote technical support.

The M400 utilizes an opaque, monocular OLED display placed in front of one eye. This means the device should be classified primarily as an Assisted Reality solution, rather than as a classic, see-through AR glasses that superimpose an image directly onto the surroundings. A transparent waveguide display is used in a separate model, the Vuzix M4000.

Technical Specifications

Device Type: Standalone, monocular wearable computer in the form of industrial smart glasses.
Device Reference: Vuzix M400, Model 472.
Display Type: Color, opaque nHD OLED display.
Display Resolution: 640 × 360 pixels.
Aspect Ratio: 16:9.
Field of View: 16.8° diagonally; the manufacturer compares the image to a 5-inch screen viewed from a distance of approximately 43 cm.
Display Brightness: Over 2000 nits.
Contrast Ratio: Over 10,000:1.
Colors: 24-bit color depth and true black reproduction.
Usage: Can be mounted in front of the left or right eye.
Processor: Octa-core Qualcomm XR1, clocked at up to 2.52 GHz. RAM: 6 GB LPDDR4 RAM.
Internal memory: 64 GB flash memory.
Operating system: Modified Android 11, customized for the device; the M400 can be upgraded to an operating system based on Android 13.
Updates: The operating system and apps support OTA (Over-the-Air) updates.
Wi-Fi: 802.11 a/b/g/n/ac, 2.4 GHz and 5 GHz bands.
Bluetooth: Bluetooth 5.0 BR/EDR/LE, including Bluetooth Low Energy.
Connector: USB 3.1 Gen 2 via USB Type-C.
Camera: Up to 13 megapixel photos.
Video transmission: Up to 1080p at 60 frames per second.
Focus: PDAF (Phase Detection Auto Focus). Lighting: Built-in LED lamp for illuminating the scene and acting as a flashlight.
Scanning: Software-based barcode scanning using the camera.
Audio: Built-in speaker with a declared output level of up to 97 dB.
Microphones: Three microphones with noise reduction.
Bluetooth audio: Supports HSP and A2DP profiles.
Positioning: GPS and GLONASS.
Motion sensors: Three-axis gyroscope, three-axis accelerometer, and three-axis magnetometer with compass function.
Head tracking: 3DoF (Three Degrees of Freedom), which records head rotation in three axes without tracking its position in space.
Control: Four buttons, a bidirectional touchpad with multi-finger support, and voice commands.
Voice control activation command: "Hello Vuzix," after enabling the function in the settings.
Backup power: An internal battery maintains the device's operation while the external battery is being replaced. Battery replacement: Hot swap support, meaning the external battery can be replaced without powering down the device or interrupting operation.
Device protection rating: IP67, meaning dust-tight and protected against the effects of temporary immersion in water under conditions specified by the standard.
Device operating temperature: -20°C to 50°C.
Storage temperature: -30°C to 70°C, as declared in accordance with MIL-STD-810H.
Operating and storage humidity: 0% to 95% relative humidity.
Drop resistance: The manufacturer declares resistance to drops from a height of up to 2 meters.
Clean environments: Declared compliance with ISO 14644-1, Class 2 cleanrooms.
Medical applications: The manufacturer declares certification in accordance with IEC 60601-1-2:2014 for electromagnetic compatibility of medical devices. Interface languages: English, German, French, Czech, Hungarian, and Polish, among others. Mounting: Vuzix M-Series universal mounting rail allows for mounting on frames, headbands, safety glasses, and other compatible mounts.

Kit Models and Variants

Vuzix M400 - Model 472
Basic device.
Standalone computer with OLED display, camera, Android operating system, and interchangeable mounting system.
Part number listed on the current product page: 472T00027.

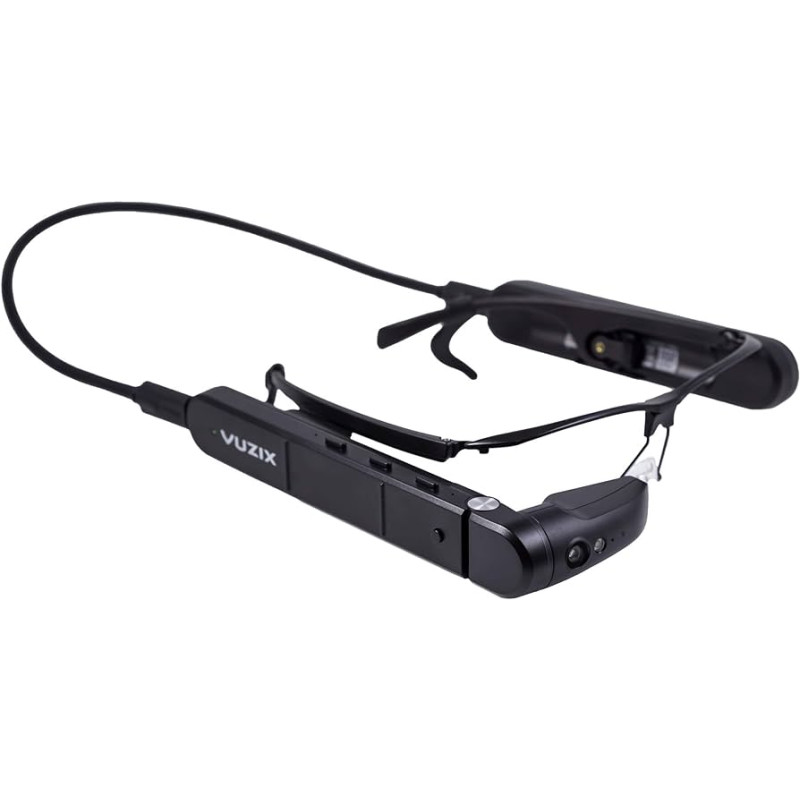

Vuzix M400 Xtreme
Currently offered variant designed for field use, outdoor use, and harsh weather conditions.
Includes a 3200 mAh Xtreme Weather battery.
The battery is IP67 rated.
Battery operating temperature range: -20°C to 45°C.
The kit includes an All-Day Comfort Headband.
The kit also includes the M400 power cable, USB charging cable, carrying case, user manual, and assembly instructions.

Software Required for Operation

The Vuzix M400 is a standalone device – it does not require a smartphone, computer, or external computing device for basic operation.
The required system software is the modified Android operating system supplied with the device. Older devices can run on Android 11, and the manufacturer offers a migration option to a version based on Android 13.
The easiest way to download applications is to connect the M400 to a Wi-Fi network and associate the device with an account in the Vuzix App Store.
A specific business application is selected for the intended use, such as remote support, video conferencing, warehouse management, code scanning, work instructions, or integration with an ERP (Enterprise Resource Planning) system.
Remote collaboration can be achieved using applications or connectors supporting Microsoft Teams, Zoom, Webex, or third-party solutions available in the Vuzix App Store.
Communication applications may require a separate user account, license, or subscription for the relevant platform; purchasing the glasses does not automatically include the purchase of all third-party service licenses. The Vuzix Companion App for Android and iOS is optional software. It allows you to configure settings, manage notifications, communicate with your smartphone, and remotely control device applications. It is not required for basic, standalone operation of the M400.
An MDM (Mobile Device Management) system is optional but recommended for larger corporate deployments, as it allows for centralized configuration, security, updating, and control of a fleet of devices. The M400 is compatible with MDM solutions from various vendors.
Upgrading from earlier versions of the system to Android 13 requires the M400 Upgrader Tool, which runs on a computer and a USB connection. This procedure restores factory settings and erases applications, data, and settings from the device, so you should back up your data beforehand.

Developer Software

Standard applications can be developed just like Android applications.
The manufacturer specifies compatibility with applications compiled for a minimum of Android SDK 27; for devices with newer software, a minimum of SDK 30 can be used.
App development can be done using Android Studio or another environment supporting Android application development.
Speech recognition features may require the Vuzix Speech SDK.
Barcode scanning features may require the Vuzix Barcode SDK.
The manufacturer provides the Vuzix Connectivity SDK for communication between the app running on the M400 and the mobile app.
