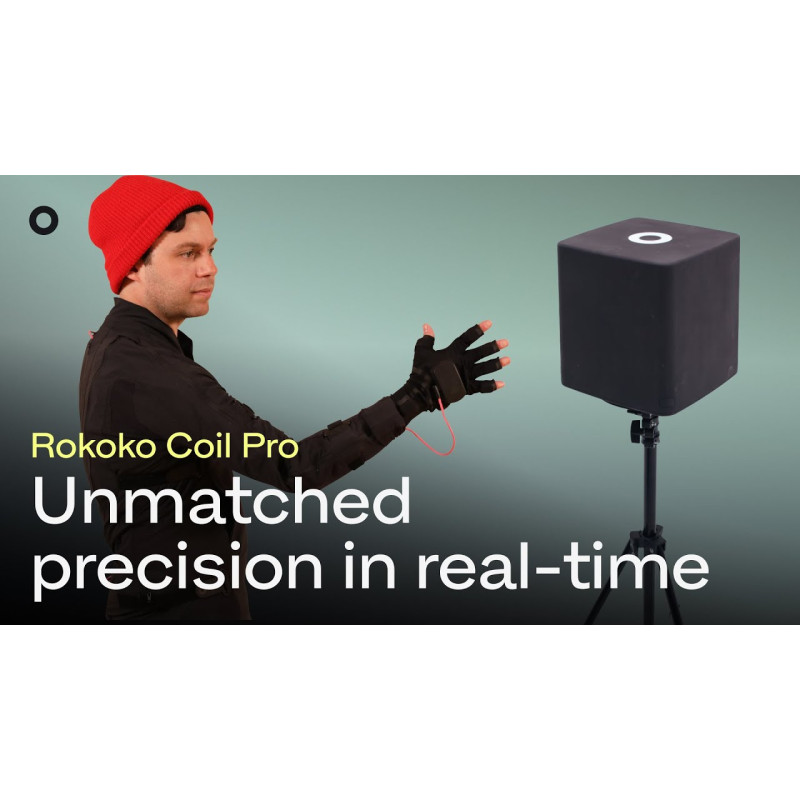

Rokoko Coil Pro

Rokoko Coil Pro

An add-on to the Smartsuit Pro II and Smartgloves providing absolute positioning for reduced drift and precise interactions.

Tech specs
Capture space / Range: 2m radius (4m diameter)
Weight: 6kg
Dimensions: 21x21x23cm
Mount: sturdy threaded mount for tripods or ceiling hangers (not included)
Full technical safety and compliance

System requirements
Smartgloves: The Coil Pro requires the Smartgloves to be connected to establish the EMF absolute position tracking
WiFi router: buy recommended router

Full Performance Capture + Coil Pro
Use the Coil Pro with Smartsuit Pro II, Smartgloves and Face Capture for a full body capture experience that removes drift and occlusion in real-time.

Smartgloves + Coil Pro
Achieve high-fidelity finger and hand tracking in your Animation, VFX, AR, VR, Robotics or Biomechanics projects.



How large is the capture space of Coil Pro?
The Coil Pro's EMF capture space is a 2m radius around Coil Pro (i.e. a 4m diameter tracking area), however the capture is uninterrupted outside this range as the Smartgloves' and Smartsuit Pro II's IMU sensors will take over the motion tracking and are only limited to WiFi range (i.e. up to 100m).

What happens if I move outside of the Coil Pro’s capture space?
The Coil Pro creates a 5m tracking radius that establishes absolute position for the Smartsuit Pro II and Smartgloves.
When walking out of the Coil Pro's 5m tracking range, the IMU sensors of the Smartsuit Pro II and Smartgloves will automatically take over for an uninterrupted capture experience.
Similarly, when walking back inside the Coil Pro's tracking range, the EMF tracking will automatically kick in again to resume the absolute position tracking.

Which Rokoko products are required and compatible with Coil Pro?
The Coil Pro will provide tracking data to the following products:
Smartgloves: absolute position tracking - either standalone or when combined with Smartsuit Pro II. Visualise, record and stream the capture data in Rokoko Studio.
Smartsuit Pro I & II: global position tracking - only when combined with the Smartgloves (the Smartsuit Pro I & II derive their global position from the Smartgloves' EMF sensor data). Visualise, record and stream the tracking data in Rokoko Studio.

Can I see the Coil Pro in a live demo?
Yes, our team of mocap experts will happily show you, in real-time, how the Coil Pro works, what you can (and cannot) do with it, how it fits into your workflow and advise on your character animation projects.
